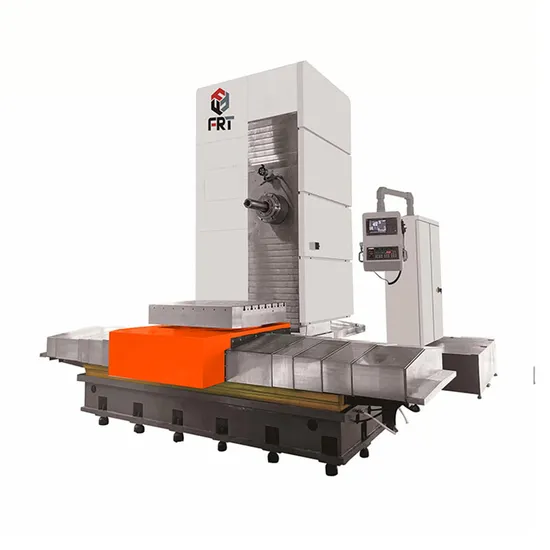

High Precision Yogie T160 CNC Universal Horizontal Metal Boring and Milling Machine

Product Description

Product Description

Main Structure
The series machine tool is a column moving structure, mainly composed of worktable, bed, slide seat, column, ram, hydraulic system, lubrication system,pneumatic system, cooling and filtering system, chip removal device, fixed operation panel, and electronic control system.

Product Parameters

Item			Main Parameter
CNC control			SIEMENS 828Dsl
Table	Worktable Size	mm	2000×6000
	Worktable Load Capacity	t/m²	15
	T-slot Specifications (width/spacing/number)		26×200×10
Travel	X axis	mm	6000
	Y axis	mm	3000
	Z axis	mm	1000
	Spindle Travel(W axis)	mm	1000
Headstock	Spindle Drive Mode		Gear case
	Main Motor Power	KW	45
	Spindle Speed	rpm	1-2000
	Spindle Diameter	mm	Φ160
	Spindle taper and specification		IS07:24NO50
	Pull stud		P50T-2-MAS403
	Ram Section	mm	500×500
	Spindle Torque(Max)	Nm	2590
	Spindle nose to work table surface	mm	200-3000
ballscrew	Ballscrew(X axis)	mm	100×20
	Ballscrew(Y axis)	mm	80×16
	Ballscrew(Z axis)	mm	63×12
	Ballscrew(W axis)	mm	63×12
Guide Rail	Guide Rail(X axis)		Four 65 specification heavy duty roller type linear motion rolling guide on the X-axis
	Guide Rail(Y axis)		Four 55 specification heavy duty roller type linear motion rolling guide on the Y-axis
	Guide Rail(Z axis)		Square ram hard slide rail
FEED	Milling speed X,Y,Z,W Axis	m/min	6/6/6/6
	Rapid X,Y,Z,W Axis	m/min	10/10/10/2
	Servo motor power for X,Y,Z,W	kw	9.75/ 7.17/ 7.75
	Servo motor torque×reduction gear ratio for X,Y,Z,W	Nm	50×5/48×5/48×5
	Servo motor speed for X,Y,Z,W	rpm	5000/ 3000/3000
Tool magazine(Optional)	magazine capacity	T	[40,60]
	Spindle nose		BT50
	Pull stud		P50T-2-MAS403
	Maximum diameter(full knife/empty)	mm	Φ125/Φ250
	maximum length	mm	400
	maximum weight	kg	25
Positioning accuracy(Standards:GB/T19362.1-2003)	X axis	mm	0.02
	Y axis	mm	0.02
	Z axis	mm	0.02
	W axis	mm	0.02
Repeated positioning accuracy(Standards:GB/T19362.1-2003)	X axis	mm	0.015
	Y axis	mm	0.015
	Z axis	mm	0.01
	W axis	mm	0.015
Power supply requirements			Three-phase 380V
Capacitance		KVA	145
Machine weight		T	105
Machine dimension		mm	11500×3000×5800

Company Profile
1.professional r&d team with 20 years of experience provide the over all solution for machine and processing.
2.Exporting to more than 50 countries worldwide
3.We own ISO certificate and SGS certification to prove our quality.
Henan Front Intelligent Equipment Co., LTD .
Henan FRT Group (Henan Front Intelligent Equipment Co.,Ltd.),its subsidiaries Luoyang Yujie Industry and Trade Co.,Ltd.,and Luoyang E-find Precision Bearing Manufacturing Co.,Ltd.,benefit from Luoyang's heavy-duty manufacturing advantages.Henan FRT Group has eighteen years experience of exploration and active innovation,has developed into a leading science and technology enterprise integrating scientific research and development, production and manufacturing, sales, technical services, and import and export trade.
FRT Group has been in the machinery industry for eighteen years and is committed to the three major fields of mechanical equipment, mechanical parts and precision bearings. The group has a group of experienced mechanical design teams, production and processing teams, assembly teams, and sales teams, and has excellent production equipments and processing technology, excellent testing instruments, complete product quality assurance system and after-sales service, consistently put product quality and users value first, adhere to integrity and long-termism, the group's core values allow customers achieving success is rooted in the hearts of company personnel.
Our Customers


FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
