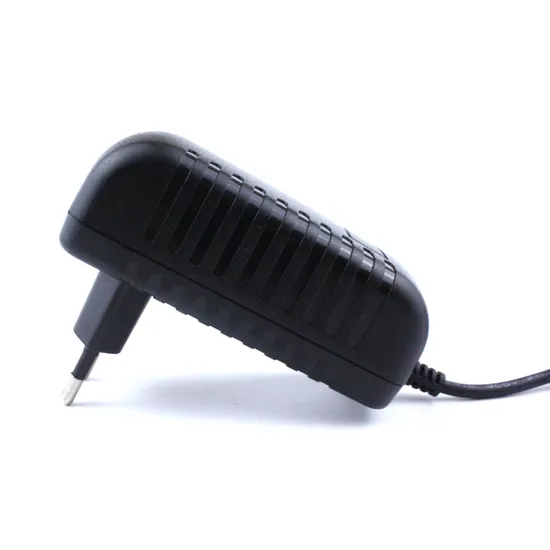

3.3V 5V 9V 12V 24V 36V 48V Factory Customized Black White Color Wall Mount UK 3pin 12V2a 12V2.1A Power 2.5A GS Dual Cable 100V 220V 12V 2A Adaptor with CE UL

Product Description

3.3v 5v 9v 12v 24v 36v 48v Factory Customized Black White Color Wall Mount UK 3pin 12V2a 12V2.1A Power 2.5A GS Dual Cable 100V 220V 12V 2A Adaptor with CE UL

MODEL		GF-090218WS	GF-120224WS	GF-240124WS
OUTPUT	DC VOLTAGE	9V	12V	24V
	OUTPUT POWER	18W	24W	24W
	CURRENT RANGE	2A	2A	1A
	RIPPLE & NOISE(max.)	100mVp-p	120mVp-p	200mVp-p
	VOLTAGE TOLERANCE	±5.0%
	CONNECTOR	5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin, mini USB,USB
	DC CABLE	1.15M or customized requirement
INPUT	AC CABLE	US UK AU EU KR IN etc.
	VOLTAGE RANGE	110~ 240VAC
	AC CURRENT(Typ.)	0.5A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	80%	82%	83%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC 30A/230VAC
	LEAKAGE CURRENT	<0.25mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down,auto recovery
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0ºC ~ +45ºC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20ºC ~ +85ºC 10~95% RH
	TEMP. COEFFICIENT	±0.05%/ºC
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	ISOLATION RESISTANCE	P-S>50Mohm at 500V DC
	WITHSTAND VOLTAGE	3KV,10mA,60S
OTHERS	DIMENSION	L83*W45*H69MM (EU)
	WEIGHT	0.11Kg,100PCS/Carton
	SHELL MATERIAL	Black plastic

MOQ-
No limited

Many power models-
5 Watts - 1800 Watts

Many voltage output-
5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).

New Design-
We have professional engineer to make new design as your speical requirment.

Good quality-
We have the best professional and experienced engineer and the strict QC system.

Sample order-
We are pleased to offer you free sample, but you need to bear oversea freight.

Fast delivery-
The delivery time is 1-25 days which depend on quantity and details items.

Payment term-
T/T, L/C, Paypal, Western Union, Money Gram.

Solutions-
With more than 10 years experience,we can provide professional design solution for power supply according your requirement.

Cooperation-
You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
