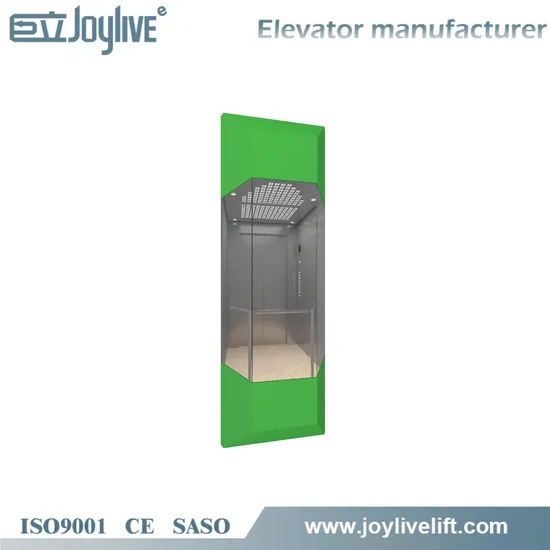

Joylive 18 People Glass Sightseeing Panoramic Lift Elevator Without Machine Room

Product Description

Product Name:Joylive 18 People Glass Sightseeing Panoramic Lift Elevator Without Machine Room
MODEL: Sightseeing Observation Panoramic Elevator
------Wider Range of Beautiful ViewCOP: Hairline Stainless Steel
HOP: Hairline Stainless Steel
Cabin: Hairline Stainless Steel,Tempered safety glass
Ceiling:Hairline Stainless Steel, LED lighting
Flooring: PVC/Marble
Elevator Application:
Residential buildings, office buildings, shopping malls, hotels
Specification Range:
Load: 630kg,800kg,1000kg,1250kg,1350kg,1600kg
Speed: 1m/s,1.5m/s,1.75m/ s
Travel Height: 90mBasic Series
GO10(GP30) MR Panoramic Lift

Load	Speed	Cabin Size	Door Opening	Shaft size	Pit depth	Top Floor Height
kg	m/s	CW×CD	EW×EH	HW×HD	PD(mm)	TH(mm)
630	1	1100×1400	CO 700×2100	2000×2000	1800	4500
	1.5				1850	4600
	1.75				1900	4650
630	1	1100×1600	CO 700×2100	2000×2200	1800	4500
	1.5				1850	4600
	1.75				1900	4650
800	1	1300×1500	CO 800×2100	2200×2100	1850	4600
	1.5				1900	4650
	1.75				1950	4700
800	1	1200×1750	CO 800×2100	2100×2350	1850	4600
	1.5				1900	4650
	1.75				1950	4700
1000	1	1500×1500	CO 900×2100	2400×2100	1900	4650
	1.5				1950	4700
	1.75				2000	4750
1000	1	1300×1900	CO 900×2100	2200×2500	1900	4650
	1.5				1950	4700
	1.75				2000	4750
1250	1	1600×1700	CO 1000×2100	2500×2300	2000	4750
	1.5				2050	4800
	1.75				2100	4850
1250	1	1500×2000	CO 900×2100	2400×2600	2000	4750
	1.5				2050	4800
	1.75				2100	4850
1350	1	1800×1700	CO 1100×2100	2700×2300	2050	4800
	1.5				2100	4850
	1.75				2150	4900
1350	1	1600×2000	CO 1100×2100	2500×2600	2050	4800
	1.5				2100	4850
	1.75				2150	4900
1600	1	1900×1800	CO 1100×2100	2900×2400	2150	4900
	1.5				2200	4950
	1.75				2250	5000
1600	1	1800×2100	CO 1100×2100	2800×2700	2150	4900
	1.5				2200	4950
	1.75				2250	5000

GON30(GPN30) MRL Panoramic Lift

Load	Speed	Cabin Size	Door Opening	Shaft size	Pit depth	Top Floor Height
kg	m/s	CW×CD	EW×EH	HW×HD	PD(mm)	TH(mm)
630	1	1100×1400	CO 700×2100	2000×2000	1700	4650
	1.5				1750	4700
	1.75				1800	4750
630	1	1100×1600	CO 700×2100	2000×2200	1700	4650
	1.5				1750	4700
	1.75				1800	4750
800	1	1300×1500	CO 800×2100	2200×2100	1750	4650
	1.5				1800	4700
	1.75				1850	4750
800	1	1200×1750	CO 800×2100	2100×2350	1750	4650
	1.5				1800	4700
	1.75				1850	4750
1000	1	1500×1500	CO 900×2100	2400×2100	1800	4700
	1.5				1850	4750
	1.75				1900	4800
1000	1	1300×1900	CO 900×2100	2200×2500	1800	4700
	1.5				1850	4750
	1.75				1900	4800
1250	1	1600×1700	CO 1000×2100	2500×2300	1900	4800
	1.5				1950	4850
	1.75				2000	4900
1250	1	1500×2000	CO 900×2100	2400×2600	1900	4800
	1.5				1950	4850
	1.75				2000	4900

List of Functions:

Elevator Standard Function
1	VVVF Drive	19	Over-load Protection	37	Running Status Display	55	Attendant Reversal
2	VVVF Door Motor Drive	20	Anti-slip Protection	38	Car Position Auto-correction	56	Front/Rear Door Independent Control
3	Full Collective Selective Control	21	Up and Down Limit Protection	39	Lighting Fan Energy-saving Function	57	VIP Service
4	Attendant Control	22	Over-speed Protection	40	Car Arrival Chime	58	Forced Stop
5	Inspection Running	23	Leveling Fine Tunning	41	Independent Running	59	Exchange Stop
6	Best Curve Auto-generation	24	Fault Diagnosis	42	Full Load and Non-stop	60	Service Floor Set
7	Shaft Auto-tuning/Self-Learning	25	Inverted Running	43	False Call Cancellation	61	Mileage Recorder
8	Weight Signal Compensation	26	Motor Over-current Protection	44	Floor and Running Direction	62	Time Recorder
9	No Load Motor Parameter Identification	27	Power Over-voltage Protection	45	Emergency Light	63	Re-leveling
10	Automatic Open Door When Power On	28	Motor Overload Protection	46	Indicatio	64	UCMP
11	Automatic Close Door	29	Anti-nuisance Device	47	Inching Operation	65	Pre-Opening Door
12	Landing Calling by LOP	30	Encoder Failure Protection	48	Five-way Intercom
13	Closing Door Repetition	31	Door Lock Short Cut Protection	49	Alarm Bell
14	Opening Door Repetition	32	Motor Temperature Rise Protection	50	Fire Emergency Return
15	Door-open Time Set	33	Automatic Return to Ground Floor	51	Remote Shut-off
16	Advance Door Closing	34	Elevator Lock Device	52	User Inspection Set
17	Nudging Running	35	Electrical Brake Release (MRL standard)	53	Time-sharing Service
18	Light Curtain Protection	36	Parking Switch	54	Security Floor in Nighttime
Elevator Optional Function
1	ARD (Auto Rescue Device)	6	Wired Remote Monitoring	11	CCTV Cable with/without Camera	16	COP Micro-light Button
2	IC Card Access Control	7	Wireless Remote Monitoring	12	Rush Period Service	17	3D Light Curtain Protection
3	Voice Synthesizer	8	Group Control Operation	13	Streaming Media Screen
4	Air Conditioning	9	Duplex Control Operation	14	Fireman operation
5	Accessibility Facilities	10	Seismic Sensor	15	Brake Energy Regeneration

Joylive Elevator Series

Model/Type	Series	DESCRIPTION+ SEGMENT	MACHINE ROOM	MAX.SPEED	MAX.TRAVEL	MAX.LOAD/ PERSONS
GP30(SMR) Passenger Lift	3000 Residential Lift	Economic elevator with acompact machine room	Yes	2.5m/s	125m	1600 kg/up to 21 persons
	5000 Commercial Lift	High-speed elevator for high-rise buildings	Yes	4.0m/s	200m	2000 kg/up to 27 persons
	7000 High-speed Lift	Ultra-high-speed elevatorfor skyscraper buildings	Yes	8.0m/s	400m	1600 kg/up to 21 persons
GPN30(MRL) Passenger Lift	3000 Residential PassengerLift	Economical elevatorfor residential buildings	No	1.75m/s	90m	1050 kg/up to 14 persons
	5000 Commercial PassengerLift	High-speed elevator for high-rise buildings	No	2.5m/s	125m	2000 kg/up to 27 persons
HospitalLift	B5000S SMR Lift	Middle-speed elevator for hospital buildings	Yes	2.5m/s	125m	1600 kg/up to 21 persons
	B5000N MRL Lift	Middle-speed elevator for hospital buildings	No	2.0m/s	100m	1600 kg/up to 21 persons
Freight Lift	F100 MR Freight Lift Geared motor	Solid&reliable heavy-duty freight elevator	Yes	1.0m/s	50m	5000kg
	F200 MR Freight Lift Gearless motor	Energy-saving heavy-duty freight elevator	Yes	1.0m/s	50m	20000kg
	FN100 MRL Freight Lift Gearless motor	Energy and space saving heavy-duty freight elevator	No	1.5m/s	75m	3000kg
	GFH10 Hydraulic lift	Unique advantage and adaptability for limit space	No	0.5m/s	25m	5000kg
PanoramicLift	GO10 SMR	Wide view with strong safety glass for sighting seeing buildings	Yes	1.75m/s	90m	1600 kg/up to 21 persons
	GON30 MRL		No	1.75m/s	90m	1600 kg/up to 21 persons
GH30 HomeLift	6300 Backpack type	Highly customized elevatorfor house/villa	No	0.5m/s	15m	410 kg/up to 5 persons
	6600 Gantry beam type		No	0.5m/s	15m	410 kg/up to 5 persons
GE05 Escalator	E200/E300/ E500	Adaptable escalator solution forpublic transportation	/	0.75m/s	16m	30°/35°
GM10 Moving Walkway	M200	Adaptable moving walkway solution for public transportation	/	0.65m/s	43.47m	0°/10°/11° /12°
GW05 Dumbwaiter	W100	Small space, applicable to hotels,restaurants and other places	No	0.4m/s	15m	300 kg

Our Projects
Production Line
Our Team
Certifications
Our Advantages
(Joycloud Platform:online monitoring system)
Joycloud™ Elevator IoT Platform
Through IoT Elevator platform, it brings full elevator manufacturing enterprise, government depart-ment, install maintenance companies, property management units, distribution agencies, and passengers closely linked into network, and provide 24-hour uninterrupted elevator operation and safety management service. According to different customer needs, we can customize cloud solutions to ensure that maintenance process is more open and transparent, riding elevator safer and more secure, management faster and more efficient.
Six Core Functions:
Dynamic Monitoring
Remote Monitoring
On-line Maintenance
Grid Rescue
On-line installation
Interactive Experience
Company Profile
Joylive Elevator Co., Ltd. was established in 2002 in Kunshan(60KM to Shanghai), Suzhou City, China and was listed on stock exchange in 2015 (Stock Code: 833481). Joylive is specializing in elevator and escalator manufacturing and related service, it has an industry-leading intelligent manufacturing center with area of 70, 000m2. The products include Passenger Elevators, Home Elevators, Freight Elevators, Escalators and Auto walkways.The company focuses on creating a global marketing and service network system, it products have covered more than 100 countries including Russia, New Zealand, Australia, Southeast Asia, Middle East, and Africa etc.Joylive insists on quality and brand building and has maintained rapid growth for many years. It is determined to develop into a high-end manufacturing and service company. With well-designed high-quality products and perfect after-sales service, Joylive has become one of the world's most competitive elevator enterprises and customers preferred elevator brand.
