XCMG Official Manufacturer Used Mining Excavator 70 Ton Large Hydraulic Crawler Excavator Xe700d Price

Product Description

Product Description
XCMG Official Manufacturer Used Mining Excavator 70 Ton Large Hydraulic Crawler Excavator Xe700d Price
More energy-conservation and environmental protection
* By adopting the international famous brand engine. It meets TIER 3 emission standard, with advantages of strong power, low noise, low fuel consumption and low emission, and is able to meet demands of various construction conditions.
* It adopts high-pressure fuel injection system, and may realize electric control of the whole course of fuel injection through controlling fuel supply actuator and timing actuator with ECM, so as to exactly control fuel injection amount and fuel injection time, thus reducing fuel consumption and enhancing engine efficiency.

More reliable and durable
* XE700D adopts Donaldson STG series heavy grayscale air filter imported with original packaging from the USA, with filtering efficiency reaching 99.99%,and adapts to working conditions with much dust and humidity.
* XE700D is set with three-stage fuel filtering system (one stage for coarse filtering and two stages for fine filtering) to effectively filter sundries in fuel, thus making sure the engine can run continuously and reliably with high load for a long time under severe working conditions. It adopts the latest type visualized oil-water separator, and the replacement time of filter element can be judged according to fuel level; the oil incoming resistance will not change during the whole course of filter element using, so the filter element cost is lower, thus reducing customer's maintenance cost.
Product Parameters

Description		Unit	Parameter value
Operating weight		kg	69000
Bucket capacity		m³	2.4-4.6
Engine	Model	Engine	QSX15
	Direct injection	---	√
	Four strokes	---	√
	Water cooling	---	√
	Turbo-charging	---	√
	Air to air intercooler	---	√
	No. of cylinders	---	6
	Output power	kW/ r/min	336/1800
	torque/speed	N.m	2102/1400
	Displacement	L	15
Main performance	Travel speed(H/L)	km/h	4.2/3.0
	Gradeability	%	35
	Rotary speed	r/min	7
	Ground pressure	kPa	101.4
	Bucket digging force	kN	363
	Arm digging force	kN	300
	Travel traction force	kN	450
Hydraulic system	Main pump	--	2
	Rated flow of main pump	L/min	2×450
	Pressure of prime valve	MPa	31.4/34.3
	Pressure of travel system	MPa	34.3
	Pressure of swing system	MPa	28.5
	Pressure of pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	950
	Hydraulic tank capacity	L	500
	Engine oil capacity	L	48
Appearance size	Overall length	mm	12130
	Overall width	mm	4410
	Overall height	mm	4700
	Width of platform	mm	4410
	Length of crawler	mm	5955
	Overall width of chassis	mm	4000
	Width of crawler	mm	650
	Wheel base of crawler	mm	4685
	Crawler gauge	mm	2800/3350
	Clearance under counterweight	mm	1565
	Min. ground clearance	mm	853
	Min. tail swing radius	mm	4090
Working scope	Max. digging height	mm	11300
	Max. dumping height	mm	7320
	Max. digging depth	mm	6950
	Max. digging depth at the range of level 8 feet	mm	6800
	Max. vertical wall digging depth	mm	5550
	Max. digging reach	mm	11580
	Min. swing radius	mm	4750

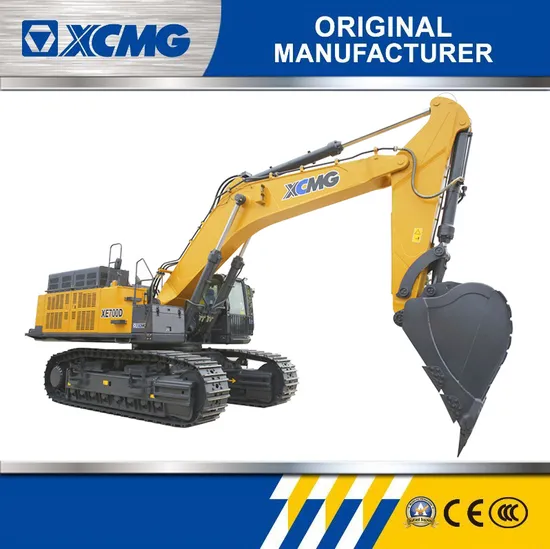

Product Picture
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
