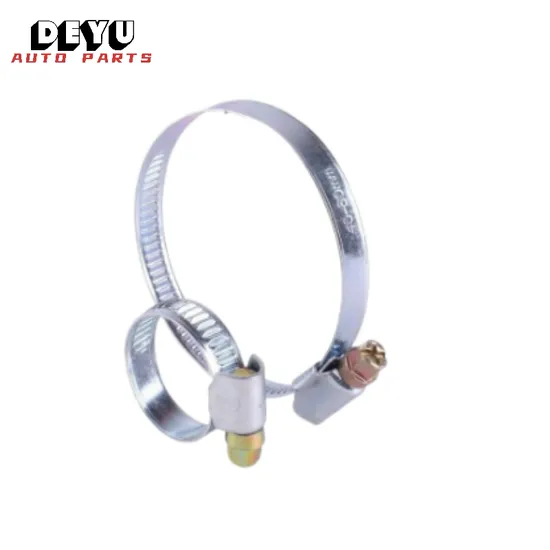

New Material Wholesale Price Custom Sizes W1/W2/W4/W5/304/201/316 Stainless Steel German Type Hose Clamp
Basic Info.
Model NO.
German Type Hose Clamp
Surface Treatment
Galvanized Sheet
Head Type
Round
Band Width
9-12mm
Usage
Plumbing, Automotive, Irrigation, Household
Color
Silver
Customized
Support
Transport Package
Poly Bag or Box, Carton
Specification
9-12 mm
Trademark
DEYU
Origin
Tianjin China
HS Code
7326909000
Production Capacity
10000 PCS/Day
Packaging & Delivery
Package Size
40.00cm * 30.00cm * 30.00cm
Package Gross Weight
15.000kg
Product Description
Product Description| Germany Type Hose Clamp | |||||||
| Size | Band range | Band width | Band thickness | Qty/Carton | Carton size | Breaking torque | |
| inch | (mm) | (mm) | W1(mm) | W2&W4(mm) | pcs | (cmxcmxcm) | Nm |
| 1/2" | 8-12 | 9 | 0.73 | 0.6 | 1000 | 38x27x10 | >=7.0 |
| 5/8" | 10-16 | 9 | 0.73 | 0.6 | 1000 | 38x27x10 | >=7.0 |
| 6/8" | 12-20 | 9 | 0.73 | 0.6 | 1000 | 38x27x14 | >=7.0 |
| 7/8" | 12-22 | 9 | 0.73 | 0.6 | 1000 | 38x27x15 | >=7.0 |
| 1" | 16-25 | 9 | 0.73 | 0.6 | 1000 | 38x27x16.5 | >=7.0 |
| 1-1/8" | 16-27 | 9 | 0.73 | 0.6 | 1000 | 38x27x19 | >=7.0 |
| 1-1/4" | 20-32 | 9 | 0.73 | 0.6 | 1000 | 38x27x24 | >=7.0 |
| 1-3/8" | 23-35 | 9 | 0.73 | 0.6 | 1000 | 38x27x24 | >=7.0 |
| 1-1/2" | 25-40 | 9 | 0.73 | 0.6 | 1000 | 38x27x29 | >=7.0 |
| 2" | 32-50 | 9 | 0.73 | 0.6 | 1000 | 40.5x37x27.5 | >=7.0 |
| 2-3/8" | 40-60 | 9 | 0.73 | 0.6 | 1000 | 40x37x35 | >=7.0 |
| 2-3/4" | 50-70 | 9 | 0.73 | 0.6 | 500 | 40.5x37x27.5 | >=7.0 |
| 3-1/8" | 60-80 | 9 | 0.73 | 0.6 | 500 | 40.5x37x27.5 | >=7.0 |
| 3-1/2" | 70-90 | 9 | 0.73 | 0.6 | 500 | 40x37x30 | >=7.0 |
| 4" | 80-100 | 9 | 0.73 | 0.6 | 500 | 40x37x30 | >=7.0 |
| 4-3/8" | 90-110 | 9 | 0.73 | 0.6 | 500 | 40x37x35 | >=7.0 |
| 4-3/4" | 100-120 | 9 | 0.73 | 0.6 | 500 | 40x37x35 | >=7.0 |
| 5-1/8" | 110-130 | 9 | 0.73 | 0.6 | 500 | 55x40x28 | >=7.0 |
| 5-1/2" | 120-140 | 9 | 0.73 | 0.6 | 250 | 40x37x30 | >=7.0 |
| 6" | 130-150 | 9 | 0.73 | 0.6 | 250 | 40x37x35 | >=7.0 |
| 6-1/4" | 140-160 | 9 | 0.73 | 0.6 | 250 | 40.5x37x27.5 | >=7.0 |
| 6-5/8" | 150-170 | 9 | 0.73 | 0.6 | 250 | 40x37x30 | >=7.0 |
| 7" | 160-180 | 9 | 0.73 | 0.6 | 200 | 40x37x35 | >=7.0 |
| 7-1/2" | 170-190 | 9 | 0.73 | 0.6 | 200 | 40x37x35 | >=7.0 |
| 7-7/8" | 180-200 | 9 | 0.73 | 0.6 | 200 | 40x37x35 | >=7.0 |
| 8-1/4" | 190-210 | 9 | 0.73 | 0.6 | 200 | 55x40x28 | >=7.0 |
| 8-5/8" | 200-220 | 9 | 0.73 | 0.6 | 200 | 55x40x28 | >=7.0 |
| 9"-1/8" | 210-230 | 9 | 0.73 | 0.6 | 200 | 55x40x28 | >=7.0 |
| 10-1/4" | 240-260 | 9 | 0.73 | 0.6 | 200 | 55x40x28 | >=7.0 |
