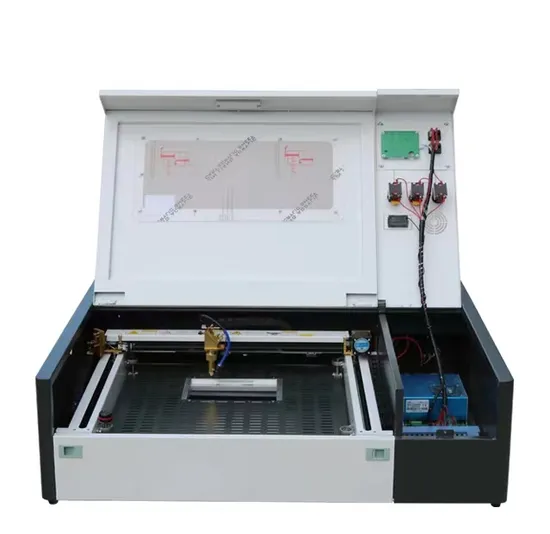

Desktop Mini 4040 400*400mm Laser Engraving and Cutting Machines 40W 50W for Glass Acrylic Leather Stamp Engraving

Product Description

00:00
00:44
Product Parameters

Product	4040
Laser type	CO2
Laser power	40W/50W
Working areaL*W)	400mm*400mm
Engraving speed	1----500mm/s
Engraving thickness	1----5mm(acrylic)
Cutting speed	1----500mm/s
Cutting thickness	1----5mm(acrylic)
Repeated Positioning Accuracy	0.01mm
Working Voltage	110v+10% 50HZ/220v +10% 60HZ
Working Temperature	5---35
Working Humidity	5--95%
Minimum Character	1*1mm
Guideway	Straight square track
Drive Mode	Stepper motor
Positioning Mode	Red light positioning
Compatible Software	Artuct/photoshop/coreldraw/autoCAD/ lasercut
Graphic Format Supported	BMPGIFPCXTGAPLTCDRDXFAI
Applicable Material	Non-metallic material
Cooling Mode	Water cooling
Control Software	DSP
Optional Device	1*1MM
Highest Scanning Precision	0.01MM
Color Separation	yes
Control software language	English/ Chinese
Pattern found	Red light positioning
Motor	stepper motor
Working material	Non-metallic material
Net weight	50KG
Gross weight	70KG
working table	Fixture platform
Laser head	Closed laser head/Open laser head
Laser tube life Span	100000working hours
USB Ports	USB2.0
Warranty	2 YEARS
Package	Export wooden box
Machine size	900*720*270mm
Packing size	1220*900*380mm
Certificate	CCC, CE, GS, ISO, SGS, UL
Up and down work table	1---10mm manual lifting platform
Transmission	Nylon belt

1.High-effciency Laser Tube ,easy in cutting and engraving. 2.Precise Linear Guideway,high-speed and precise,strong load capacity and rigidity.
3.Professional Control System,high-speed engraving and cutting.
4.USB port transfer flies, support offline work.
5.Newest laser work software, compatible with CoreIDraw and AutoCAD.
6.The circulation of water cooling,guarantee the water temperature is constant.
7.Laser Machine Software to control the cutting and engraving process of your work, controlling speed, power, and resolution. Capable of engraving vector and picture files directly.
8.This software is compatible with a large variety of design programs (Such as CorelDraw, PhotoShop, AutoCAD, TAJIMA,Artcut, and more) and files: BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF formats.
9.Imported high precision linear guide rail and professional optical system of the laser cutting and engraving machine, dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.
10.Professional Honeycomb and Strip work table, which meet the needs of diversified laser procession.
11.Laser Engraving machine can be applied to different kinds of materials and has many advantages such as smooth
cutting edges, free from polishing, noise free, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries.
12.Heavy body more steady difficult deformation and protect rust.Multi function one machine can cut ,engraving & scan .Have fine cutting and engraving effect and price advantage.Support U-download data, support off-line.
13.Emergency stop (turn off the machine immediately when there is an accident)color layer setting(change the working speed and power by using color settings).Glass viewing windows creating a safe enclosure for laser processing.

14.Adopt imported Linear Guiding System and ensure the machines endurability.
15.The Optical Lens adopt high intensity gilding silicon and non sphere focusing lens, So the Lens. Can endure the scrubs and the high temperature and no need no be often changed, thus reduce the resuming cost. The focusing diameter of the non sphere lens is small, and make the cutting effect better.
16.High Quality Laser tube provides the Strong beam and Long service life.
