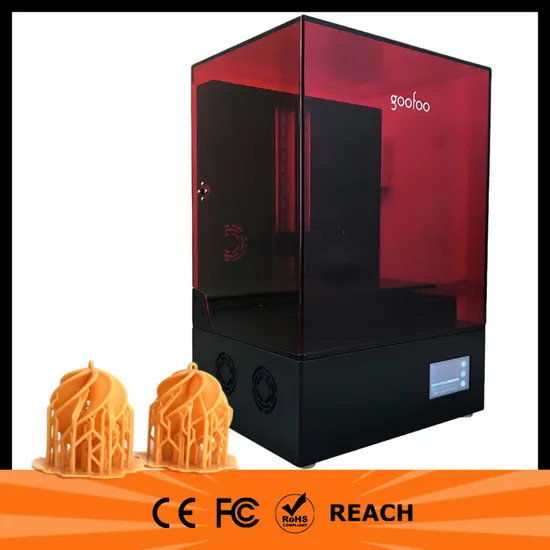

Big Size 3D Printers with 4K Monochrome LCD Screen Resin 3D Printer Dental Resin Liquid Crystal Light Curing Photosensitive 3D UV Resin Printer

Big Size 3D Printers with 4K Monochrome LCD Screen Resin 3D Printer Dental Resin Liquid Crystal Light Curing Photosensitive 3D UV Resin Printer

US$1,980.00
1-49 Sets
US$1,760.00
50+ Sets

Basic Info.

Model NO.
Rays-XL 13.3inch
Size
Big
Precision
76.5microns
Speed
20-70mm/H,1.2-2s Per Layer
Forming Technology
UV-LCD
Connections
USB Disk/WiFi
Operating System
Windows 7 or Later,Mac OS 10.6.8 or Later
Software Format
.stl
LCD Dimension
13.3" 4K Monochrome
Dimension
440*360*680mm
Build Volume W*D*H
292*165*300mm
Color
Red
Material
Aircraft-Grade Aluminum
Print Chamber
Fully Enclosed
Net Weight
34.8kg
Light
405nm 200W Matrix LED UV-Light
Slicing Software
Chitu Slicer
Build Platform
Aluminum
Power Support
300W
Touch Screen
5" Full Color Touch Screen
Stepping Motor(X,Y,Z/PCS)
--16mm Ball Screw --Dual Industrial Linear Guide
Resolution Unit
3840*2160 Pixel
System Language
Multi Language
Transport Package
Standard
Specification
Package dimension: 1030*565*490mm
Trademark
Goofoo
Origin
China
HS Code
8477591000
Production Capacity
20, 000-25, 000stes/Year

Packaging & Delivery

Package Size
104.00cm * 57.00cm * 50.00cm
Package Gross Weight
60.000kg

Product Description

Company Profile
Since foundation in 2014, Xiamen Goofoo Technology is committed to providing one stop full industry chain services of Additive Manufacturing and traditional manufacturing, including 3D Scanner, 3D Printer, 3D consumables, 3D Printing services and Laser Engraver and Cutte, etc.. We work together with the customers and take into consideration different factors such as time, cost, assembly accuracy and mechanical strength, providing the alternative options to the customers, who can purchase the suitable 3D Printer of FDM, MSLA, SLM technology from us, or we can custom parts with 3d AM service, CNC machining or Sheet metal/Bending technology as customers' needs. Product Description Place of Origin Fujian, China Application Industrial Features SLA 3d printer Warranty 1 Year Molding Technology LCD Applicable Industries Manufacturing Plant, Home Use, Printing Shops, Advertising Company, Dental, jewelry Weight 34.8 KG Key Selling Points High-accuracy Brand Name Goofoo Dimension(L*W*H) 680x440x360mm Voltage 100-240V Usage 3D Printing Automatic Grade Automatic Color & Page single color Condition New Machinery Test Report Provided Video outgoing-inspection Provided Warranty of core components 1 Year Core Components Motherboard,Ball Screw Brand Name Goofoo 3D Printer Print Technology UV-LCD Print speed 20-70mm/h Layer Thickness 25/50 microns Support material Phtotopolymer Resin Light source 405nm UV LCD Array Build Platform Aluminum Print Chamber Full Closed LCD Dimension 13.3 "-4K Touch Screen 5" full color touch screen
ITEM Rays-XL
Color Red
Forming Size 292*165*300mm
XY Printing Accuracy ±0.076mm
Printing Speed 20-70mm/h /1.2-2 second/layer
Layer Thickness 0.025-0.05mm
Resolution Unit 3840*2160 pixel
LCD Screen 4K Monochrome
Light Source 405nm Matrix LED Array
Printing Material Photopolymer Resin
Connectivity USB/SD Card
Operate Screen 5-ich Touch Color Screen
Z-Axis 16mm Dual Linear Rail
Feeding System Auto Feeding
Net Weight 35 KGS
Detailed Photos
Goofoo is a high-tech enterprise that is unlimited field of 3D Printer, Materials, Software, 3D Printing and aiming to grow to be one of the 3D Printing solution providers in the world. Since foundation in 2014 goofoo has released more than 15 series of 3D printer covering the area of the kids for fun, hobby maker, education, home, office and industrial application and so on.
