Slaughterhouse Cattle Fat and Stomach Contents Processing Pbc Batch Cooker

Product Description

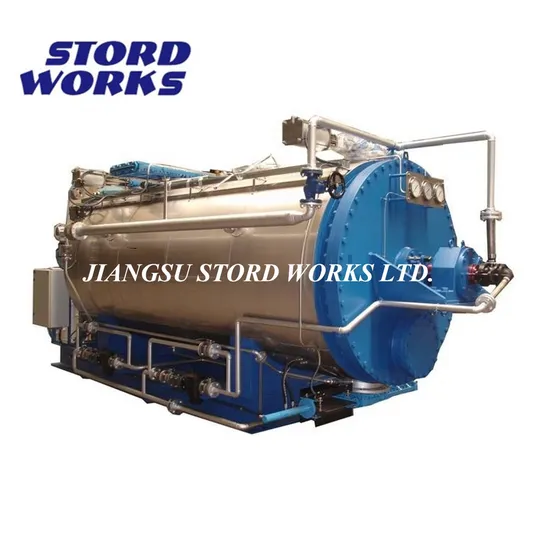

PBC batch cooker is also called batch hydrolyzer and is mainly used for the recovery and utilization of animal waste , such as slaughter house animal waste, finding extensive applications in the production of meat meal, bone meal and feather meal. It is also used for the treatment of dead beasts and birds and animal carcasses. It integrates high-temperature sterilization, chemicalization and drying to achieve the desired effect. The equipment is suitable for the harmless disposal in large and medium-sized slaughter houses, farms and cities. Together with the crusher, dryer, oil press, screw conveyor, exhaust gas treatment and other equipment, it forms a complete waste treatment system. The equipment has the following characteristics:
1. The shell adopts a double-layer jacket, and both the jacket and the inner rotor pass high-temperature steam to increase the heat exchange area and improve the production efficiency.
2. The material of the equipment can be carbon steel, stainless steel, duplex steel, etc.
3. Due to the integral steel frame structure bracket, the installation position can be changed arbitrarily.
4. The inlet and outlet are automatically controlled and easy to operate.
5. The feeding weight is controlled by the bottom load cell, with high feeding precision, and product quality is stable.
6. The equipment working pressure range is wide, and the heating component design pressure can be 0.05-2MPa.
7. The insulation uses stainless steel plate to enhance the anti-corrosion ability and prolong the service life.
8. The automatic draining system is used to recover the steam condensate to the boiler, reducing energy consumption and saving water and heat.
Our Advantages
The batch cooker may be supplied with manual or automatic discharge outlet. We also supply additional equipment such as:
·Simple, rugged equipment for effective cooking and drying in batches - pressurized if required
·Very versatile-ideal for heating and drying a wide range of animal and poultry by-products
·Delivered pre-configured with all necessary valves, instruments, steam trap system, safety valve and insulation as standard
·Effective control of temperature, pressure and retention time ensures best-quality output
Product Parameters

Model	Loading capacity(L)	Motor power(kw)	Equipment weight(t)	Dimension(L×W×H)(mm)
PBC-2000	1200	11	7	3800×1600×1500
PBC-3500	2200	22	12	5800×1600×1600
PBC-6000	3500	37	16	5800×1800×1600
PBC-8500	5500	55	25	8500×2000×1800
PBC-10000	6500	75	30	9000×2000×1800
PBC-12500	8000	90	35	10500×2000×1900
PBC-16000	9800	110	40	10500×2200×2000
PBC-18000	11000	132	45	10500×2300×2100

1.Carefully check the quantity and quality of equipment before packing.
2.Good packed by plastic wrap.
3.Iron Frame, Suitable for land transport and sea freight.
4.Fittings and spare parts are packed in wooden pallet.
5.Add labels and shipping mark.
Fields of application
·As part of high-temperature dry rendering lines in meat or poultry processing plants
·Poultry rendering operations involving hydrolysis of the feathers
·Straightforward, smaller-capacity batch cooking operations (less than 3 metric tons/hour)
·Pressure cooking animal by-products containing wool or hair into pet food
Certifications
Our company has successively obtained the national standard pressure vessel manufacturing license, the pressure vessel design certificate, the ISO9001 certificate, the ISO14001 certificate, and obtained the ASME,CE,DNV, TR-620 certificates successively by cooperating with many international professional testing institutions such as BV, TUV, DNV, SGS.
