Wood Veneer Peeling Lathe Machine Blade Peeler for Plywood Line

Product Description

Wood Veneer Peeling Lathe Machine Blade Peeler for Plywood Line
Product Description

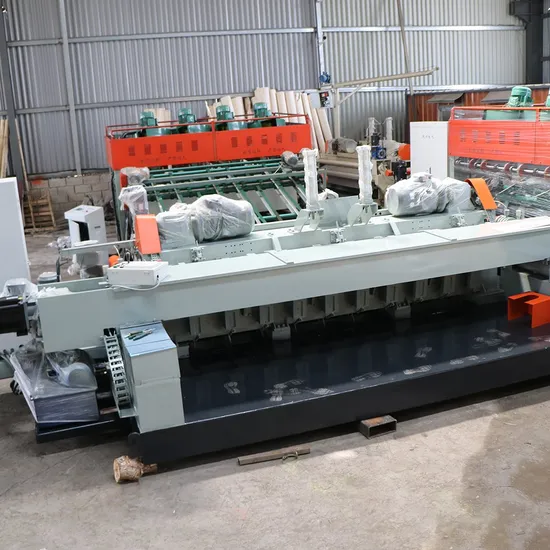

Automatic CNC Spindleless veneer peeling machine
1.Touching screen control system. You can set all kinds parameters in this system, and language showing in this controlling screen, can be translated into your country's own language.
2. The linear speed of host machine and thickness of the core veneer can be adjusted.
3. Servo feeding motor.
4. Automatic lubrication system. Ensure machine running stable, so the using life of the machine is extended.
5. Feeding system is designed into leading screw and screw nut which is made from alloy. It guarantee feeding system synchronizing go forward and backward, so the veneer is in same thickness and smooth surface.
6. Min. diameter of the wood core after peeling is 24mm, can max. help save wood log material.
Product Parameters

No	Veneer Peeling Machine
1	Type	4feet (1300mm)	8feet (2600mm)
2	Model	GT-014feet	GT-018feet
2	Cutting Size(Diameter*Length)	500*1300mm	500*2600mm
4	Min Residual Diameter	28mm	32mm
5	Max Stroke of Tool Slide	500mm	450mm
6	Cutting Thickness	0.5~3.6mm	0.5~3.6mm
7	Cutting Speed	50m/min	48-65m/min
8	Power	21.5KW	60 KW
9	Peeler blade(L*W*H)	1400mm*180mm*16mm	2700mm*180mm*16mm
10	Clipper Size(L*W*H)	1400mm*90mm*12.7mm	2700mm*90mm*12.7mm
11	Dimensions (L*W*H)	4100mm*2150mm*1600mm	6100mm*2200mm*1650mm
12	Total Weight	About 6000KG	About 11000KG

Detailed Photos

Product Details
1. Automatic Servo Motors.
2. High speed and adjustable speed from 40- 110meter/minute.
3. Double feeding port.
4. Both side of core veneer will be smooth.
5. High thickness of steel frame makes the weight heavy.
6. Voltage can adjust according to different countries situation.
Our Advantages:1. The operation is simple.
2. High work efficiency.
3. To save time and effort.
4. Long service life.
Running guide rail:CNC cutting.
Quenching increases the hardness.
Unlimited service life.
Avoid the wear and tear of the common lead screw,guaranteen
machine operation deviation,veneer width and thickness.
Automatic hydraulic installation blade, more convenient blade replacement, save more time to change the knife.
