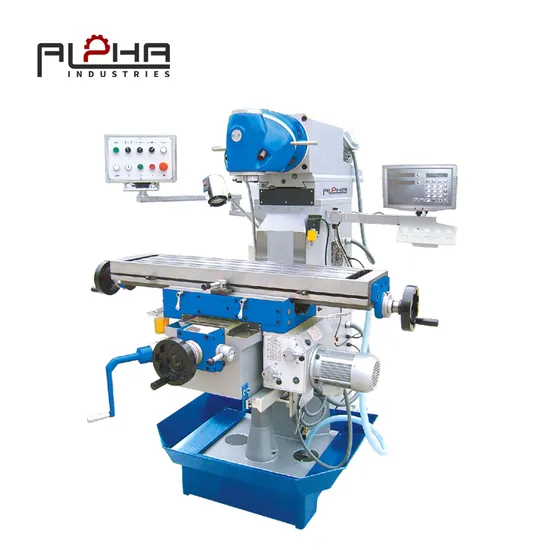

Excellent Price and Performance Ratio Muv100 Milling Machine

Product Description

• Excellent price and performance ratio.
• Wide range of applications.
• Solid,heavy-duty model made from high-grade cast iron.
• Solid,precise cross table,precision-ground.
• All guideways hardened adjustable due to tapered gibs.
• One shot lubrication
• Dove tail slideways.
• Main switch with protective motor switch,right-left-hand rotation switch,emergency stop switch.
• Heavy duty handwheel with scale.
• Equipped with work lamp,cooling system,oil tray
• Bay table get more capacity
Product Parameters

Model No.		Unit	MUV100	MH6336
max.drilling dia		mm	-	30
max.end milling capacity		mm	25	125
max.face milling capacity		mm	125(4.92")	-
max.vertical milling dia.		mm	-	25
max.tapping dia			-	M16
work table size		mm	1120×260	1320×360
number/width/distance of T-slot		mm	-	3/18/80
quill travel		mm	-	140
max.swivel angle of headstock		o		±45
vertical spindle axis to column surface		mm		150-550
vertical spindle nose to table surface		mm		200-650
horizontal spindle axis to table surface		mm		0-450
longitudinal/transverse feed		mm/min		15-370/15-370/575
swivel angle of swivel head			360	-
cross travel		mm	270
longitudinal travel		mm	600
vertical travel		mm	420
taper of spindle bore			ISO40	ISO40(V/ISO50(H)
spindle nose to table		mm	100-480	-
step of spindle speed		steps	11	10V)12(H)
range of spindle speed		rpm	45-1660	70-3620 (V)58-1800(H)
table feed		mm/min	18-310
table travel		mm		900×300×450
motor		kW	2.2	3.7(V/4.0(H)
packing size		mm	1655×1325×1730	2070×2020×2330
G.W.		kg	1350	2200

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
