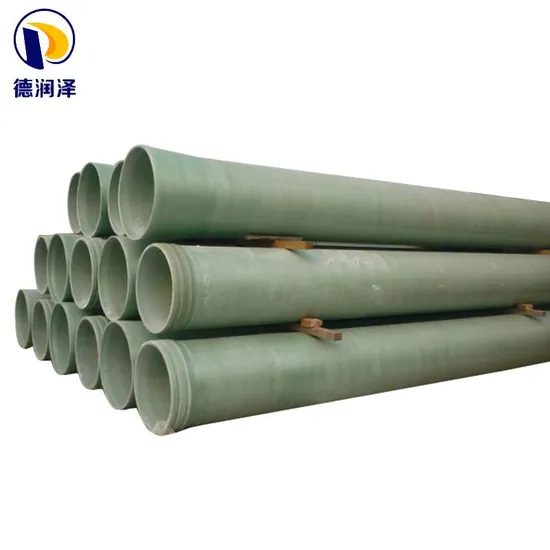

Fiberglass Composite FRP GRP Grv Pipe

Product Description

FRP/GRP high strength fiberglass manufacture pipes prices

Product Description

FRP pipe is in the filament winding process, using quartz sand layer will strengthen, make its have sandwich structure, such as reducing the comprehensive cost of the pipeline, and improve the overall strength and stiffness of the pipeline.

High pressure FRP pipe is a new type of nonmetallic pipe. In its making, glass roving, soaking by low viscosity but strong adhesive bonding resin,winds around mould at the preset angle and layers. It has to be cured,released from the mould and then processed. Excellent corrosion resistance, high endurance, light weight and high strength are among its special properties

Specification

Product name	Fiberglass / FRP pipe
Material composition	FRP / GRP
Length	6meter or according to clients'request
Usage	Cold and hot water supply, Heating system
Trade terms	EXW, FOB, CNF, CIF
Eco-friendly	Yes
Sample provide	No
OEM	Yes
Shipping way	By sea/land

Product show

Fiberglass pipe types

FRP process pipe

FRP clip sand pipeline

FRP composite pipe

FRP gas pipe

FRP cable pipe

FRP insulation pipe

FRP pipe jacking

FRP high pressure pipe

FRP spraying pipe

The type of pipe's coupling
1. Sole sealing ring socket coupling: suitable for medium pressure
2. Double sealing ring socket coupling: suitable for high pressure
3. Socket coupling: suitable for high pressure and heavy-caliber piping
4. Spigot coupling: suitable for high, medium and low pressure piping and fittings' coupling
5. Socket '0' type sealing coupling, nylon clapper '0' wedged lock which mainly apply to axial strength piping
6. Flange coupling: suitable for medium and low pressure piping

Characteristics

frp cable protection pipe
1. High strength, Used for the carriageways directly buried, don't need concrete cover, Can speed up the construction progress
2. Flexibility, Resistant to outside pressure and damage
3. Electric insulation, flame retardant, heat resistant performance is good, can be use for a long time in 130 degrees heat and not easy deformation.
4. Resistance corrosion, long service life, can resist acid, alkali and salt corrosion; can be used more than 50 years.
5. Smooth inner wall, protect cable
6. Sealing circle and socket connection, easy to handling
7. Light weight, easy to construction, saves cost
8. Applicability range is wide: Glass fiber reinforced plastic cable protection tube is buried cable laying in the protection work, also used in Cable Bridge, high demand across the occasion.
FRP GRP pipe
1. Light weight, high strength, and convenient transportation and installation.
2. Excellent corrosion resistant, it can be used under the condition of seawater environment for long time.
3. Good low temperature resistant, it can be used under the condition of -45°C-120°C for long time. 4. Smooth inner surface, its roughness coefficient is 0.0084, good conveying, and no fouling, no secondary pollution, decrease th e cost of the running & maintenance.
5.Fire retardant, it meets IMOA.753(18) Level-3 fire resistance class.

Specifications

Application

FRP cable protection pipe 1. City power grid construction and renovation project
2. City reconstruction project
3. Aviation airport project construction
4. Industrial zone, residential project construction
5. Traffic road, bridge construction

GRP/FRP craft pipe
1. Chemical and sewage treatment lines
2. High/middle/low-pressure liquid delivery lines
3. Brine injection lines
4. Tertiary oil recovery injection (polymer,CO2,NaOH, etc.)lines
5. Oil tank inlet and outlet lines, oil station used lines
6. Oil production wells, treatment wells (brine, chemical fluid or sewage), and injection wells (brine, CO2, polyester, heat and etc.).

Related products

Company information

HEBEI DERUNZE CHEMICAL EQUIPMENT CO.,LTD is made up of several manufacturing enterprises, is a high tech enterprises that collection of sale for project consulting, designed and developed, engineering design, materials purchasing, transport of goods, equipment installation and training debugging, and has passed ISO 9001:2015 international quality management system certification, our company is the national foreign trade, the general administration of customs approved the company has import and export right.
We mainly produce potassium sulfate production equipment,FRP tank production equipment,FRP pultruded products(include FRP Square tube/Rectangular tube /Round tube /Rod / U channel / I beam / Flat / Angle /Decking panel /Plum blossom tube /Ladder carling /Ladder crossgirder ),FRP pipe, FRP tank,FRP septic tank,FRP water tank,FRP grating,Cooling tower,FRP scrubber,Cable tray,FRP cover,FRP flange,FRP rock bolt,FRP handrail and so on,Looking forward to your visit and communication!

Packaging & Shipping

>> Packing: First,use wood pallet,then use plastic film,then put them into the container.
>> Delivery: Within 30 days after the payment was received.
