Nichrome80 wire coil NiCr8020 spiral heating wire for furnace kiln

Product Description

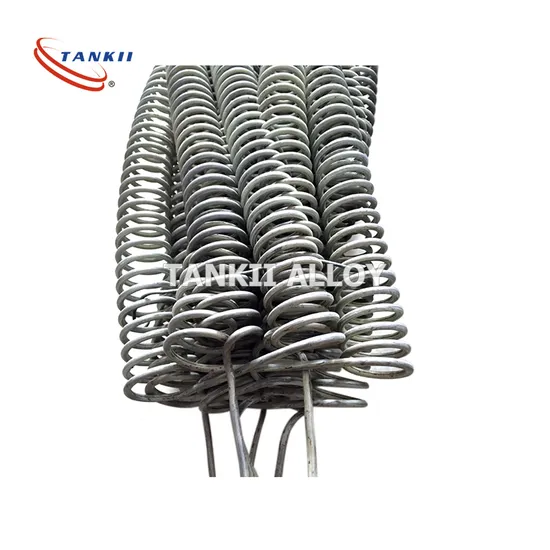

Nichrome80 wire coil NiCr8020 spiral heating wire for furnace kiln
Spiral electric heating elements consist of cylindrical spirals formed by one or two resistive wires of suitable alloy depending on the application.
Its main features include the inclusion of a nickel-chrome alloy wire heating element and a normalized tension of -230 V.
The usual applications are: industrial dryers, air heaters, stoves, etc.
Moreover, and according to the alloy wire they contain, we can distinguish three types of models:
M models, with a 20-5 quality and mainly intended for stoves. MS models, with a 80-20 quality and useful for all applications. MC models, with a 20-5 quality and used in quartz and infrared tubes. Product Description
Grade: Ni80Cr20 ,also called MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V etc.Chemical Content(%)

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.03	0.02	0.015	0.60	0.75~1.60	20.0~23.0	Bal.	Max 0.50	Max 1.0	-

Mechanical Properties of nichrome wire

Max Continuous Service Temperature:	1200ºC
Resisivity 20ºC:	1.09 ohm mm2/m
Density:	8.4 g/cm3
Thermal Conductivity:	60.3 KJ/m·h·ºC
Coefficient of Thermal Expansion:	18 α×10-6/ºC
Melting Point:	1400ºC
Elongation:	Min 20%
Micrographic Structure:	Austenite
Magnetic Property:	nonmagnetic

Temperature Factors Of Electrical Resistivity

20ºC	100ºC	200ºC	300ºC	400ºC	500ºC	600ºC
1	1.006	1.012	1.018	1.025	1.026	1.018
700ºC	800ºC	900ºC	1000ºC	1100ºC	1200ºC	1300ºC
1.01	1.008	1.01	1.014	1.021	1.025	-

Regular size of Nickel alloy wire :
We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.
Bright and white wire--0.025mm~3mm
Pickling wire:1.8mm~10mm
Oxidized wire:0.6mm~10mm
Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm
