Automatic Power Transformer Oil Dga Dissolved Gas Analysis Gc Gas Chromatograph
| US$10,000.00-13,629.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HZGC-1212A
Appliance
The Analysis of Environmental Samples
Gaspath System
Single
Detector
FID
Certification
CE
Spectrometer Detector
Si(Li)
Chromatography Type
Gas Chromatography
Chromatographic Column Type
Capilary Column
Chromatographic Column Length
10~30cm
Chromatographic Column Diameter
2~5mm
Operation Display
5.7 Inch Lattice Localization Color LCD
Temperature Control Region
6 Road
Temperature Range
Above Room Temperature 8 Degrees~ 450degree
Incremental
1 Degree
Accuracy
+ / - 0.1 Degree
Temperature Programmed Order Number
16 Order
Cheng Sheng Rate
0.1~39 Degrees/Min
Gas Control
Mechanical Valve Control Mode, Electronic Flow Con
External Event
4 Way; Auxiliary Control Output 4 Road.
Boot Into The Sample
Manual, Automatic Optional
Transport Package
Wooden Box with Foam Inside
Specification
CE/ISO/IEC
Trademark
HuaZheng
Origin
Hebei, China
HS Code
9027201900
Production Capacity
100 PCS/Month
Product Description
Automatic Power Transformer Oil Dga Dissolved Gas Analysis Gc Gas ChromatographI. Introduction
HZGC-1212 Portable Dissolved Gas Analyzer electric power special gas chromatography using the national standard recommended three
detector processes. An analysis of the contents of seven components (H2, C2H2, C2H6, C2H4, CO, CO2,
CH4, ) in the insulating oil. When the minimum detection concentration satisfied for 1mL, per unit volume of oil
contained volume of gas is: H2≤2ppm,C2H2≤0.1ppm,CO,CO2≤2 ppm,Qualitative repeatability: Deviation≤1%;
Quantitative repeatability: Deviation≤3%.
II. Parameter
| Noise | ≤5×10-14A |
| Drift | ≤1×10-13A/30min |
| Linearity range | ≥106 |
| Sensitivity | S≥3500mV?ml/mg(Sixteen alkanes)(1, 2, 4, 8 x magnification optional) |
| Baseline drift | ≤30μv/30min |
| Detection limit | Mt≤3×10-12g/s (Sixteen alkanes) |

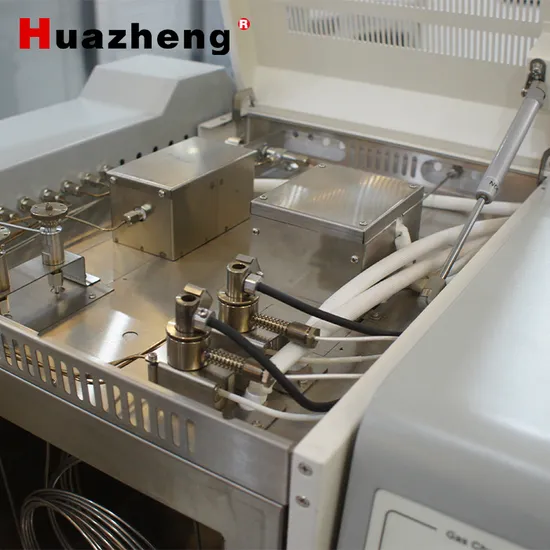

III. Detailed Photos
Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
Customer Visit
Exhibition
