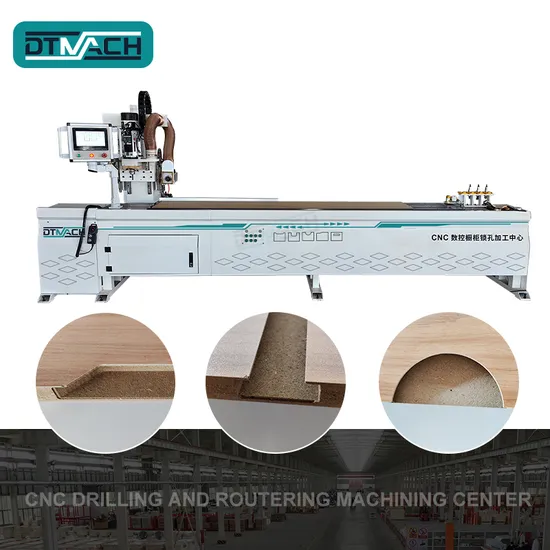

Factory Price Automatic Industrial CNC Side Hole Drilling Boring Machine Woodworking Furniture Horizontal Grooving Drilling Machine

Product Description

CNC grooving machine features:
1.Truly multi-purpose in one machine: Horn trough, left and right half-way handles, lightning handles, Semicircular groove, Built-in handle slot, Oval groove, Left and right half-way slots, Straightener slot, Plate handle slot, Door lock opening, unequal double door, Three-in-one hole, Concave handle,Hinge drilling....(The machine comes standard with 100 kinds of graphics, optional file import)
2.Advantages: Convenient to use, Servo motor , laser scanning holes , automatic tool setting, wifi scan code processing automatically generates data, automatic tool change, handwheel adjustment ,vacuum adsorption plate
3.It consists of 7 working areas, the plate is fixed, and the perforation is not easy to deviate.
4.Helical gear + linear guide, left and right movement, higher accuracy
5.Automatic plate thickness measurement, easy to operate, higher precision.
Product Parameters

Voltage	380V three live wire, one nature wire
Total power	23.5kw
Frequency	400HZ
Air source pressure	0.6-0.8Mpa
Plate width	≥ 5 cm
Plate thickness	0-9 cm
Plate length	≤ 280 cm
Rotational speed	18000 m/min
Machine size	400*125*190 cm
Machine weight	1050 kg

Detailed Photos
Product Display

Company Profile
Certifications

FAQ
Q1:I want a edge banding machine , can you give me some suggestions ?
A : Sure , we wil give recommend of the most suitable machine . Before that , we need to know some information , such as sheet material to be processed , edge band material , processing quantity etc .
Q2: Which kind of materials can be processed on this machine ?
A : PVC , melamine , plastic and other materials .

Q3: Are you a factory or trading company ?
A : We are the manufacturer and we have many years factory experience . You can fuly trust the machines we produce .Most importantly , we wil provide you with the most thoughtful and best after - sales service .
Q4: How should I pay for my order ? A : You need to pay 50% as prepayment as first , then we wil start to make production . When the machine is completed , we wil send pictures or videos to you , and then you need to pay the balance . We wil ship the machine to you after we receive your ful payment .

Q5: How long is the delivery time ?
A : For standard machines , it wil be 12-15 days . For non - stan - dard machines and customized machines according to client' s specific requiremens , it wil be 15-30 days.
