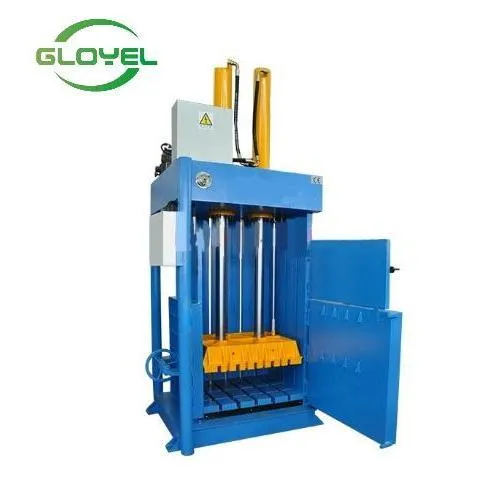

Vertical Press Plastic Baling Machine Waste Paper Hydraulic Baler Cardboard Press Carton Compactor for Sale
| US$10,800.00 | 1 Piece (MOQ) |
Basic Info.
Automatic Grade
Automatic
Power Source
Hydraulic
Warranty
1 Year
Certification
CE
Name
Large Vertical Two-Side Door Opening Type Baler
Model
Lba080t80
Hydraulic Power(Ton)
80
Bale Size(L*W*H) mm
1000*800*(500-1000)
Feed Opening Size(L*H)mm
1000*500
Chamber Size(L*W*H) mm
1000*800*1500
Output(Bales/Hr)
3-6
Power(Kw/HP)
11kw/15HP
Machine Size(L*W*)mm
1700*1450*3500
Machine Weight(Kg)
2800
Used for
Plastic(Both Solid and Soft), Fiber, Sponges
Feature
Double-Cylinder Balance Compressing System
Advantage
Automatic, Easy Operation, Safety and Reliability
Keyword
Vertical Baler
After-Sale Service
24h
Transport Package
Wooden Box
Specification
2800
Trademark
LEABON
Origin
Zhengzhou, Henan, China
HS Code
8479820090
Production Capacity
50 Sets/Month
Product Description
Vertical Press Plastic Baling Machine Waste Paper Hydraulic Baler Cardboard Press Carton Compactor For SaleProduct Description
| 1. Introduction of baler: * Suit for compress hard plastic, sponge, fiber, can etc. * The machine use double cylinder balance compression, special hydraulic system, more stable. * High load structure, automatic bales out device, safe and reliable. * Using rectangular door opening type, the bale can be trapped in "#" shape. * Adopt England brand sealing parts; improve the life time of oil cylinder. * Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon. * Adopt Taiwan brand superposition type valve group. * Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump. |
Product Parameters
| Model | LBA080T60 | LBA080T80 | LBA080T100 | LBA080T120 |
| Hydraulic Power(Ton) | 60 | 80 | 100 | 120 |
| Bale Size(L*W*H) mm | 1000*1000*(400-900) | 1000*800*(500-1000) | 1000*800*(500-1000) | 1000*800*(500-1000) |
| Feed opening Size(L*H)mm | 1100*500 | 1000*500 | 1000*500 | 1000*500 |
| Chamber Size(L*W*H) mm | 1000*1000*1500 | 1000*800*1500 | 1000*800*1500 | 1000*800*1500 |
| Output(Bales/hr) | 3-6 | 3-6 | 3-6 | 3-6 |
| Power(KW/HP) | 7.5KW | 11Kw/15Hp | 15Kw/20Hp | 18.5Kw/25Hp |
| Machine size(L*W*)mm | 1700*1450*3500 | 1700*1450*3500 | 1700*1450*3500 | 1700*1450*3500 |
| Machine Weight(KG) | 2300 | 2800 | 3200 | 3400 |
Application Range
More pictures
More Different Type
Related product
Large-scale Vertical Four-side Door Opening Type Balers
This model is designed for pressing and packaging materials with higher rebound force including rigid plastics,PET bottles, hay,fibers,sponges,cloths and others.
Heavy-duty vertical hydraulic baler with double-cylinder balance compressing design, and extraordinary hydraulic system to provide continuous stable force during compression. It generates greater compression force to bale larger loads, four sides opening style with"#" shape strapping capability,also allows the materials to be packaged before strapping. Chamber anti-rebound device can be optionally installed.
Technical Parameter
| Model | LBA070T80 | LBA070T120 | LBA1010T160 |
| Hydraulic Power(Ton) | 80 | 120 | 160 |
| Bale Size(L*W*H) mm | 1000*700*(500-900) | 1000*700*(500-900) | 1100*1000*(400-1200) |
| Feed Opening size(L*H)mm | 1000*500 | 1000*500 | 1100*800 |
| Chamber Size(L*W*H)mm | 1000*700*1500 | 1000*700*1500 | 1100*1000*2000 |
| output(Bales/hr) | 4-6 | 4-6 | 4-6 |
| Voltage(Customizable)(/Hz) | 380/50 | 380/50 | 380/50 |
| Power(KW/HP) | 11/15 | 15/20 | 30/40 |
| Machine Size(L*W*H) mm | 1800*1480*3500 | 2100*1700*3500 | 2100*1800*4600 |
| Machine Weight(KG) | 2600 | 3200 | 6000 |
Workshop Scene
Packaging & Shipping
Company Profile
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea.
