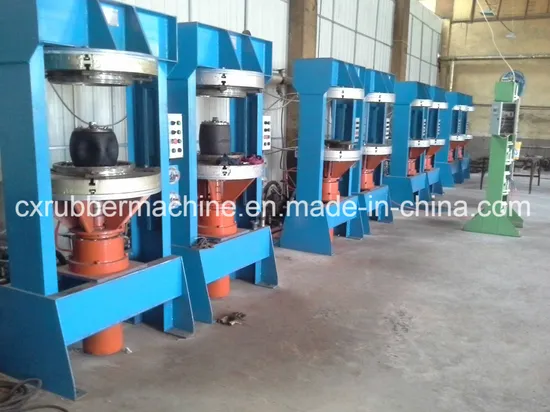

Bicycle/Motorcycle Tire/Inner Tube Hydraulic Vulcanizing Curing Press

Product Description

Bicycle/Motorcycle Tire/Inner Tube Hydraulic Vulcanizing Curing Press
We have ISO9001:2008,SGS,CE standard and offer all kinds of certification according to customer's request:like CO,CIQ,SASO and so on.
Product Profile:
This machine is uesed to produce tyre,hydraulic press for tyre, It can produce more size small tyre,weel barrow tyre,For example,:3.50-4,3.50-5, 4.00-8,650-8.
Our Machine Advantage:
Our machine is fully automatic control, compact, small footprint, simple workers, high productivity, low cost devices, easy maintenance, low maintenance cost
if need a lot of tires, this is a great business opportunity, if you are using this machine, you can earn huge profits, we have the product quality is very good, low price, we provide technical training, machine specific details, Can be customized according to customer requirement
Technical Parameter of Motorcycle Tire Vulcanizing Curing Press Machine:

Type	YLL-600	YLL-1000		YLL-1400	YLL-1600	YLL-2000
Total pressure(KN)	600	1000		1400	1600	2000
Working layer number	2	2		2	2	2
Steam chamber internal dia.(MM)	820	830		1050	1150	1450
Piston(MM)	250	285		340	360	400
High Perssure(Mpa)	13	16		15.5	16	14
Low pressure(Mpa)	5	5		5	5	5
Pressure in bladder(Mpa)	1.5	2.1		2.1	2.1	2.1
Steam-Working pressure(Mpa)	0.6-0.8	0.6-0.8		0.6-0.8	0.6-0.8	0.6-0.8
Overall dimension	1200×900×2400	1200×900×2358		1360×1050×3820	1410×1060×3500	1500×1500×3200
Weight (Kg)	3200	4500		6000	7000	8000

About us:
1.special manufacturer with more than 30 years of experience of exporting ability that has professional producing team and technical support
2.Exclusive and unique solution can be provided to our customer by our well-trained and professional
engineers and staff.
3.best after sale---follow the whole producing situation,provide photos of machines loaded into containers, track the operating and using situation of client and train your workers for free in case of any problems occur and reply you within 12 hours.
4.high quality ,reasonable price and flexible delievery time
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
