High frequency welded pipe making machine is the main equipment for the welded steel tube production line with decoiler, strip feeding, roller forming and sizing, high frequency solid welding, cutting and stock. Right side are process flow chart of our pipe mill line.
This Tube Mill production line consist of seven part:
1.Double-head Uncoiler
2.Shearing & butt welding machine
3.Cage Loop
4.Forming and sizing mill
5. H.F. welder + Electric Control System
6.CNC flying friction saw
7.Run out Table
Detailed Photos
Layout View
Shear and Butt Welding
Shear Butt Welder is an necessary part of the tube mill. It's function is to weld the steel strips end together. It contains strips entering device, shearing device, welding device, moving rack device, pneumatic or hydraulic system.
We have the pneumatic shear butt welder and Hydraulic shear butt welder.
Usually, for thin steel plate, customer can choose either the pneumatic and hydraulic one. When the thickness is more than 3mm, we suggest customer choose the hydraulic type.
In order to make the perfect weld quality, we use the Siemens touch screen and PLC, which can control the weld speed and current automatically.
Accumulator( Horizontal or Vertical)

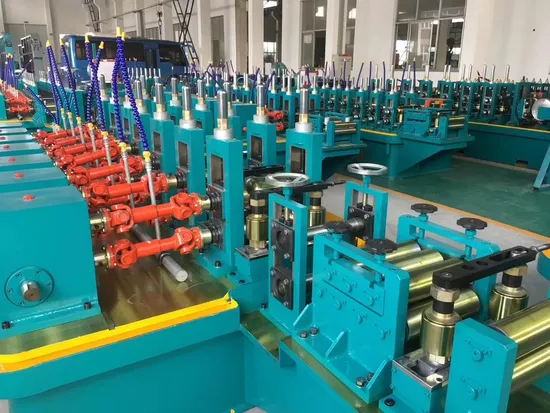

Forming and Sizing
High Frequency Induction Appliance
Automatic Cold Cutting Flying Saw
Features
1. The equipment base is equipped with inlet guide rollers (upper and lower, left and right rollers), the front end of the clamp is equipped with auxiliary guide rollers, and the final discharge position has idlers. All idlers help the parallel movement of the pipe during the sawing process.
2. Both ends of the saw body are equipped with carriage safety buffers;
3. The saw blade is equipped with a steel brush device to remove iron filings on the saw blade when rotating
Product Parameters

Model	Round Pipe	Square Pipe	Rectangular Pipe	Thickness	Pipe Length	Line Speed	Welding Type	High Frequency Power/KW	Standard
MYZGJ16	7.5 - 16 mm	/	/	0. 4 - 1.0 mm	4.0 - 10.0 meters	Max. 120 m/min	Solid State High Frequency Welding	60	/
MYZGJ20	10 - 25.4 mm	10 x 10 - 20 x 20 mm	10 x 20 - 10 x 30 mm	0.4 - 1.0 mm	4.0 - 10.0 meters	Max. 120 m/min	Solid State High Frequency Welding	60	/
MYZGJ32	12.7 - 38.1 mm	10 x 10 - 30 x 30 mm	10 x 20 - 40 x 20 mm	0. 5 - 1.8 mm	4.0 - 10.0 meters	Max. 120 m/min	Solid State High Frequency Welding	100	/
MYZGJ45	15.0 - 50.8 mm	12 x 12 - 40 x 40 mm	10 x 20 - 50 x 30 mm	0.6 - 2.0 mm	4.0 - 10.0 meters	Max. 100 m/min	Solid State High Frequency Welding	150	/
MYZGJ50	20.0 - 63.5 mm	15 x 15 - 50 x 50 mm	10 x 20 - 60 x 40 mm	0.8 - 2.75 mm	4.0 - 10.0 meters	Max. 100 m/min	Solid State High Frequency Welding	200	/
MYZGJ60	25.4 - 76.4 mm	20 x 20 - 60 x 60 mm	10 x 30 - 80 x 40 mm	1.0 - 3.0 mm	4.0 - 10.0 meters	Max. 90 m/min	Solid State High Frequency Welding	250	/
MYZGJ76	31.8 - 89.0 mm	25 x 25 - 70 x 70 mm	20 x 30 - 100 x 40 mm	1.0 - 3.75 mm	4.0 - 10.0 meters	Max. 80 m/min	Solid State High Frequency Welding	300	/
MYZGJ89	38.1 - 102.0 mm	30 x 30 - 80 x 80 mm	20 x 40 - 100 x 60 mm	1.0 - 4.0 mm	4.0 - 10.0 meters	Max. 80 m/min	Solid State High Frequency Welding	300	/
MYZGJ114	38.1 - 114.3 mm	30 x 30 - 90 x 90 mm	20 x 40 - 60 x 120 mm	1.0 - 4.0 mm	4.0 - 10.0 meters	Max. 70 m/min	Solid State High Frequency Welding	300	/
MYZGJ125	63.5 - 127 mm	50 x 50 - 100 x 100 mm	60 x 40 - 150 x 50 mm	2.0 - 5.0 mm	4.0 - 10.0 meters	Max. 60 m/min	Solid State High Frequency Welding	400	/
MYZGJ165	76. 2 - 165 mm	60 x 60 - 130 x 130 mm	80 x 40 - 140 x 120 mm	2.0 - 6.0 mm	4.0 - 10.0 meters	Max. 60 m/min	Solid State High Frequency Welding	500	/
MYZGJ219	89.0 - 219.0 mm	70 x 70 - 170 x 170 mm	80 x 60 - 140 x 200 mm	2.0 - 8.0 mm	4.0 - 10.0 meters	Max. 60 m/min	Solid State High Frequency Welding	600	/

The specification of every model depends on the tube size and thickness. The value is for reference. Please contact us for confirmed technical proposal.
