Z3050 Universal Hydraulic Vertical Radial Drill Drilling Machine Drill Machine Radial Arm Drilling Machine

Product Description

Z3050 Universal Hydraulic Vertical Radial Drill Drilling Machine Drill Machine Radial Arm Drilling Machine

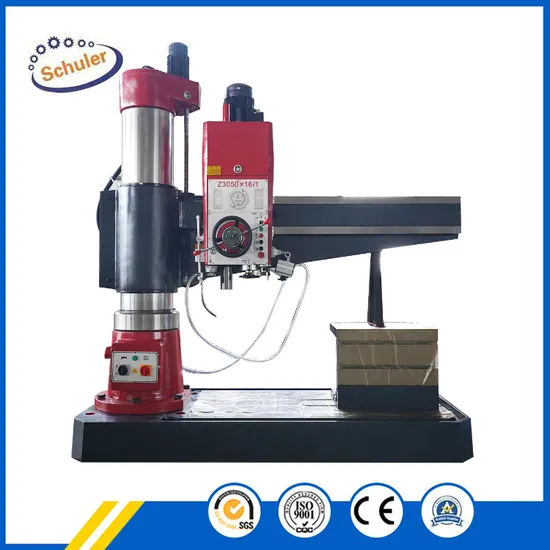

Product picture:

Features:
The radial drilling machine model Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.
Drilling Machine Technical Parameters:

SPECIFICATIONS:		Unit	Z3050X16
Max. drilling diameter		mm	50
Distance between spindle axis and column		mm	350~1600
Distance between spindle end and working surface of base plate		mm	320~1220
horizontal movement of spindle box		mm	1250
Work table size		mm	630 x 500 x 500
Taper in spindle:			No.5
Spindle travel:		mm	315
Number of Spindle Speeds:			16
Range of Spindle Speeds:		r/min	25-2000
Number of Spindle Speeds:			16
Range of Spindle Feeds:		mm/r	0.04 -3.2
Power of main drive motor:		kw	4
Weight	N.W	kg	3500
	G.W	kg	3850
Overall dimensions(L x W x H)		cm	250 x 107 x 284
Packing dimension(L x W x H)		cm	258X110X 255

Drilling Machine Details Picture:







Radial Drilling Machine In the Workshop:

Drilling Machine Package Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil,
hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
Our Company:

FAQ:
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team. We can Provide Technical support online service and Machine operation Vedio We can provide on-site training and commissioning Vedio We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment) 8.Agents Wanted: ---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
