Pipe End Bevelling Machine
| US$88,888.00 | 1 Set (MOQ) |
Basic Info.
Condition
New
Certification
ISO 9001:2000
Automation
Automatic
Suitable for
Aluminum, Carbon Steel, Stainless Steel
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Applicable Domain
Oil & Gas, Petrochemical, Powerplant, Offshore etc
Control System
PLC with Human Machine Interface Touch Screen
Purpose
Pipe End Beveling
Beveling Procedure
Tool Bits and Cold Beveling
Voltage
380-440V±10%-3pH/50-60Hz
Bevel Type
U, J, V, X, Double V & Compound Bevel
Color
Red or as Request
Type
Pipe and Tube Bevelling Machine
Application
Oil & Gas, Petrochemical, Refinery, Offshore
Type for Cutting Machine
CNC Bevel Cutting Machine
Type for Fold-Bending Machine
PLC Controller
Transport Package
Sea Worthy Packing
Specification
ISO9001, CE, SGS, TUV
Trademark
QSPT
Origin
Shanghai, China
HS Code
8458110000
Production Capacity
20 Sets/Month
Product Description

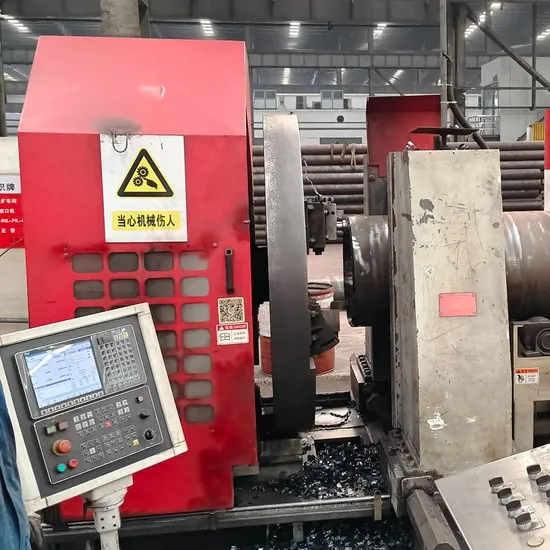

Product DescriptionPiping Fabrication Beveling Machine(CNC Control)
Performance features
On-line performance: Good(designed as per the on-line equipment of the production line)
Beveling speed: ≤ 5min /pipe bevel (dn200 sch40)
Bevel cutting: Cutting a pipe with other equipment such as band saw and then machining each bevel.
Bevel quality: Very good
Application: For machining the u or v shape bevels for numbers of pipes with heavy wall thickness
Technical parameters
Pipe diameter applicable: Dn50-400(Φ 57-426)/ dn100-600(Φ 114-610)/ dn200-800(Φ 219-813);
Pipe wall thickness applicable: 4-90mm; 6-180mm
Materials applicable: Carbon steel, alloy steel, stainless steel and cryogenic steel, ect.
Bevel shape: U, x, v and double v
Driven by: Motor
Clamping system: Work piece is clamped by hydraulic cylinder & centering automatically
Bracket system: Screw lifting adjustable
Rev of the principal axis: Stepless speed control & variable frequency
Axial displacement: 80mm(principle axis) 100mm(machine head); 150mm(principal axis), 300mm (machine head)
Bevel angle of tool rest: 0° ~45°
Widthwise displacement: ± 50mm; ± 100mm
Control system: PLC controlling; CNC controlling
| 1 | Pipe Diameter Applicable | DN50-400/DN100-400/DN200-800/DN200-600 |
| 2 | Wall Thickness | 4-90mm;6-180mm |
| 3 | Material Applicable | C.S,S.S, Alloy Steel, Cryogenic steel, etc. |
| 4 | Bevel Shape | U,X,V,and Double V |
| 5 | Control System | PLC, CNC |
