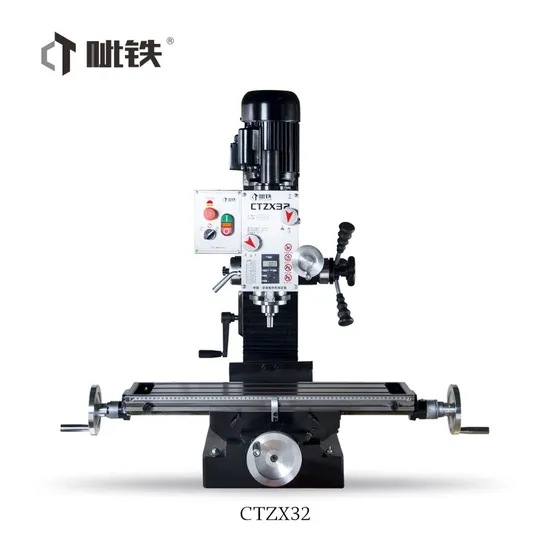

Ctzx32 Mini Drilling Milling Machine with 32mm Capacity From China with Dro
Basic Info.
Model NO.
CTZX32
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Drilling Capacity
32mm
Max Milling Capacity
63mm
Spindle Travel
85mm
Motor Power
750W
Net Weight
205GS
Transport Package
Standard Wooden Packing
Specification
1000*800*1200mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Packaging & Delivery
Package Size
120.00cm * 82.00cm * 140.00cm
Package Gross Weight
220.000kg
Product Description
| Max.Drilling capacity | 32mm |
| Max.milling capacity | 63mm |
| Max.vertical milling capacity | 20mm |
| Table size | 700x180mm |
| T-slots size | 14mm |
| X spindle travel | 410mm |
| Y spindle travel | 205mm |
| Z spindle travel | 310mm |
| Spindle taper | MT3 |
| Spindle travel | 85mm |
| Distance from spindle to column guide rail | 203mm |
| Distance from spindle end to table surface | 445mm |
| Spindle box left&right rotation angle | 45° |
| Spindle speeds | 95~1420r/min |
| Motor Power | 750W |
| Net weight/gross weight | 205/220Kg |
| Overall dimensions | 1000x800x1200mm |
| Package Size | 720x720x1050mm |
