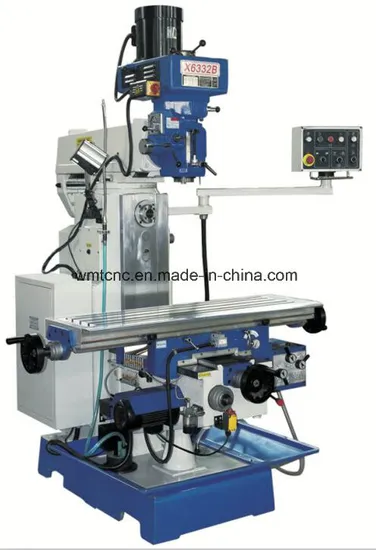

Universal Swivel Head Milling Machine X6332b with Rectangular Guide

Product Description

Turret Milling machine
X6332B used high-speed milling head, high- powered, high- speed range. The Max is about 5440 r.p.m. automatic feed on two-axis, motorized lift on Z axis

Specifications	X6332B
Spindle taper	ISO40
Spindle travel(mm)	150
Distance from spindle to column(mm)	200-500(V)
Spindle speed range(r.p.m)	68-7200V
	12 step 60-1350H
Table size	1250×320
Table travel	600×300×300
Main motor(kw)	3.7/2(V)
Table feeding speeds(8sets) (mm)	15-370 (rapid 540/min)
T-slot (number-width-disance) (mm)	3/4/70
Overall dimensions(mm)	1700×1520×2260
N.W/G.W (kg)	1750/1950

FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
