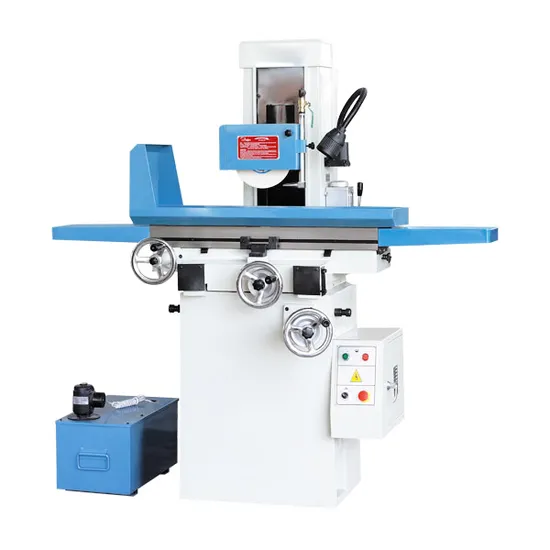

Manual Type Surface Grinding Machine M618A

Product Description

Manual type Surface grinding machine M618A
Feature:
1.Quality castings and Precision ball bearing supporting the spindle
2.Coolant system with nozzle and flow control valve
3.Cast iron machine body and stand for maximum rigidity and smooth operation
4.The machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.The machine is suitable for grinding without auto feed and is installed with permanent magnetic chuck or electromagnetic chuck according to customer's requirement.
5.Vertical dial graduations 0.01mm
6.Cross travel graduations 0.02mm
7.Manual one shot lubrication pump
8.Wheel balancing stand and arbor
9.Halogen work light

Model				M618A	M820
Working table	Table Size (L× W)		mm	460×180	480x200
	Max movement of working table(L× W)		mm	500×190	530x220
	T -Slot number×width		mm	1×14	1×14
Grinding head	Max distance from spindle center to table surface		mm	335	450
	Wheel Size(Outer diameter×width×Inner diameter)		mm	φ180×13×Φ31.75	φ200×20×Φ31.75
	Wheel speed	50HZ	r/min	2850	2850
Table slide -way			/	V-type rail with steel-ball	V-type rail with steel-ball
Feed amount	Vertical feed on handwheel	Per revolution	mm	1.25	1.25
		Per graduation	mm	0.01	0.01
	Cross feed on handwheel	Per revolution	mm	2.5	2.5
		Per graduation	mm	0.02	0.02
Motor power	Spindle motor		kw	1.1	1.1
	Coolant pump motor		kw	0.4	0.4
Weight	Net		kg	650	700
	Gross		kg	750	800
Overall dimension(L×W×H)			mm	1550x1150x1590	1680x1140x1760
Package dimension(L×W×H)			mm	1000x1150x1760	1140x1250x1940

Standard accessories
Tool box
Balancing stand balancing bar
Flange wrench
Screwdriver
Balancing screw
Open-end wrench
Inner hexagon spnner
Wheel dresser holder
Wheel dresser
Machine flange
Wheel flange
Chuck
Optional accessories:
1. Tilting permanent chuck
2. Demagnetizer
Our Services
1. Your inquiry and email will be replied within 24hours.

2. If you need to develop products with your own specification, we can help you to work it out.

3. Always be honest, never lie to customer, and never declare anything we don't have.

4. Customer First:,we offer best Quality and Service!
FAQ
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.

2. Delivery Time:
one week

3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.

4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
