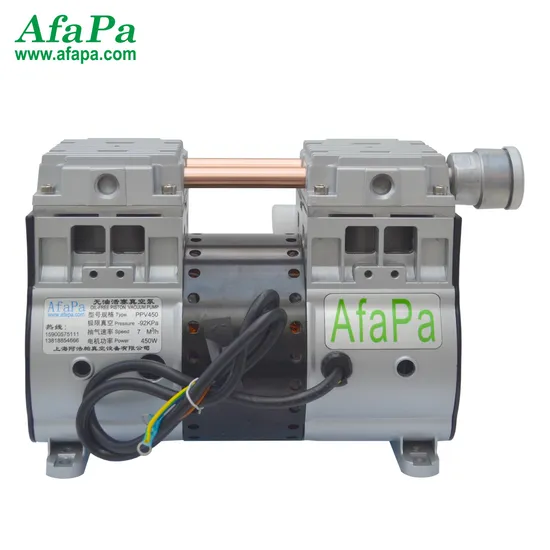

450W 100L/Min -98kpa Laboratory Dry Piston Vacuum Pump for Oxygen Machine

Product Description

Product Description
PP Dry Oil Free Piston Vacuum Pump:
with vacuum technology develop rapidly, due to new materials stability improve greatly, widely used in micro dry oil free vacuum pump field.
Application:
Widely used in oxygen machine, dental medical equipment, test equipment, vacuum beauty slimming equipment, printing plate printing machine, exposure machine, electronic and electrical automation equipment, vacuum packaging machine etc.
Our Advantages 1. Stability Vacuum Degree;
2. High Quality Piston Ring;
3. High Hardness Piston Bush;
4. Impact Resistance Stainless Steel Discharge Valve Plate
Product Parameters

Model	Voltage	Motor Power	Max Vacuum		Max Flow Rate		Noise	Weight	Size
	V, Hz	Kw/Hp	mmHg/Torr	Kpa	L/min	m3/h	dB	Kg	LxWxH, MM
PPV-120	110/220, 50/60	0.12/0/16	-640	-84	30	1.8	48	1.8	143x85x121
PPV-200	110/220, 50/60	0.2/0.27	-650	-86	50	3.0	48	3.6	177x94x136
PPH-320	110/220, 50/60	0.32/0.42	-740	-98	68	4.1	52	6.0	237x97x162
PPV-320	110/220, 50/60	0.32/0.42	-700	-92	90	5.5	52	6.0	237x97x162
PPH-450	110/220, 50/60	0.45/0.6	-740	-98	100	6.0	53	8.5	244x128x186
PPV-450	110/220, 50/60	0.45/0.6	-700	-92	120	7.2	53	8.5	244x128x186
PPH-550	110/220, 50/60	0.55/0.75	-740	-98	166	10	54	9.0	244x128x204
PPV-550	110/220, 50/60	0.55/0.75	-700	-92	200	12	54	9.0	244x128x204

Exhibition
Project Case
FAQ Q1: If I want to inquiry, what can I need to offer?
A1: Please tell us your Working Vacuum Degree(Pa,mbar or torr), Flowrate(L/S or M3/H) and Usage.
Q2: Do you have MOQ?
A2: 1Pcs is ok,if you have more quantity, the price will be cut down.
Q3: How long to delivery?
A3: We need about 4-5 weeks to produce,then extra need about 5-7 days to arrange domestic delivery and port clearence.
Q4: What is your payment term?
A4: 50% for prepayment, then the balance should paid before delivery, by TT.
Q5: How long for the warranty?
A5: 1 year for whole machine, the effective date of warranty should be counted from one month the goods arrived in client's site. If the pump go wrong, the client can choose back the pump to factory repair,or we offer remote technical support.
