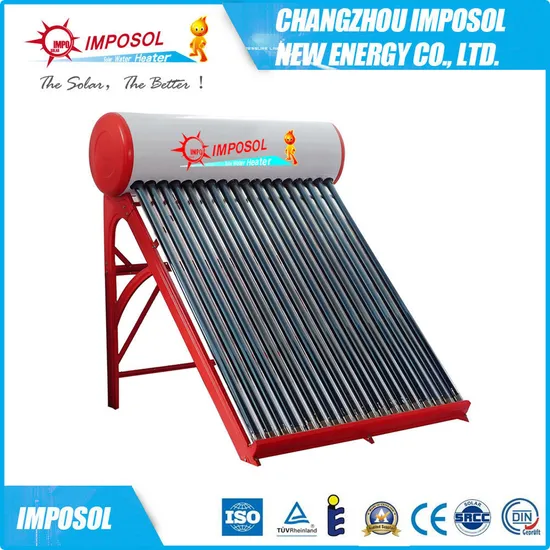

80L-300L Non-Pressurized Vacuum Tube Solar Energy Hot Water Heater

Product Description

80L-300L Non-Pressurized Vacuum Tube Solar Energy Hot Water Heater
Product Description
Technical Specifications :
Inner Tank : SUS304-2B food-grade stainless steel - 0.4mm thickness , laser welding technology .
Vacuum Tube : High efficient ALN/ALN-SS/CU coating , 58 x 1800mm vacuum tube - 1.6mm thickness , resist 25mm hail .
Outer Tank : SUS201-BA stainless steel - 0.4mm thickness , free-welding technology .
Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .
Frame support : SUS 201BA stainless steel - 1.2mm thickness or Aluminum alloy 2.0mm thickness, anti-corrosive and anti-ultraviolet .
M8 Stainless steel SUS 304 bolts and nuts .
58mm Silicone seal ring and dust ring
Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent

Optional accessories :
Aluminum component reflectors
Electrical heater
Magnesium anode rod
Assistant tank - Cold water filling tank
Solar Controller

Product Parameters

Model	Light Area(m2)	Vacuum Tube			Capacity	20FT/40HQ
		Ø(mm)	L(mm)	NO.	(Liters)	Loading Qty
IPJG 100 SS	1.4	58	1800	10	100	71/172
IPJG 150 SS	2.1	58	1800	15	150	52/125
IPJG 200 SS	2.8	58	1800	20	200	39/96
IPJG 250 SS	3.5	58	1800	25	250	33/80
IPJG 300 SS	4.2	58	1800	30	300	28/68
IPJG 400 SS	5.6	58	1800	40	400	21/52
IPJG 80 SS	1.12	58	1800	8	80	80/194
IPJG 120 SS	1.68	58	1800	12	120	62/150
IPJG 160 SS	2.24	58	1800	16	160	48/116
IPJG 180 SS	2.52	58	1800	18	180	43/105
IPJG 240 SS	3.36	58	1800	24	240	34/82
IPJG 360 SS	5.04	58	1800	36	360	23/57

Working principle
Company introduction:

Changzhou Imposol New Energy Co., Ltd. Is top ten in china for exportation.with more and more customers from Europe,Australia,Africa and Asia joinning us.
With products' high performance and reasonable price backing us, With products'quality and company's credit supporting us,We believe that we are turning the world greener day by day-together!

As an OEM factory in china,We specialize in manufacturing various types of solar water heater,solar collectors and vacuum tubes.Our product range include;compact and split,low pressure and high pressure vacuum tube solar water heater;thermosyphon;heat pipe,Upipe and SCHMV tube solar collector;flat plate solar water heater and solar collector.
We have also designed and carried out some wonderful solar water projects for hospitals, schools,factories and familieS as well as our own design for new products.
Why Choose US?

1.Our Product is economic and environmental;

2.Our Product is durable and has a long service life;

3.We have rich production experience.The quality of Product is reliable;

4.We have a perfect production process and strict quality control system;

5.We have perfect service system and will give you the best service.

6.Professional Production Line
Certification
Produce line
Our solar products
