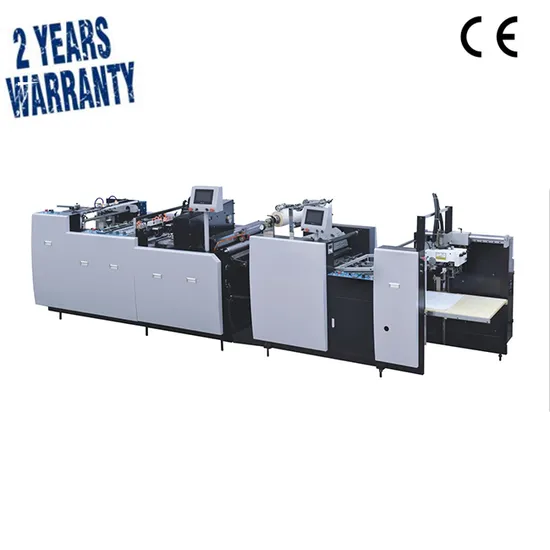

Automatic Single / Double Side Film Priner Cutting Coating Gluing Adhesive Film Laminating Machine (SAFM-1080)
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
SAFM-1080
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
Thermal Film
Plastic Film Mulching Modes
Hot Laminating
Performance
Waterproof
Model
Safm-1080
Max Laminating Size
1080X1080mm
Min Laminating Size
290X340mm
Max Speed
0-80m/Min
Paper Weight
100-500g
Power
35kw
Total Weight
7500kg
Overall Dimensions
9000X2200X1900mm
Transport Package
Wooden Case
Specification
CE
Trademark
AOCHI
Origin
Zhejiang. China
Production Capacity
100 Set/Sets Per Month
Product Description
Automatic Multifunction Paperboard Flute Laminating Machine (SAFM-1080)Product Description Configuration:
·Stream feeder, with automatic sheeting and jogger delivery.
·Oil free vacuum pump on stream feeder with both separating and forwarding suckers.
·Servo-controlled pump on stream feeder with both separating and forwarding sucker.
·Colour touch screen interface, programable for sheet size and overlap.
·Oil heated for stable and precise PID electronic control of temperature.
·Film slitting and perforating system on feed roll.
·Sheet decurling device for production of flat laminated sheets.
·Strong pneumatic laminating pressure.
·Pneumatic film tension brake.
·Swing-away film loading onto airshaft.
·Whole machine is easily moved by pallet trolly for convenient storage in limited spaces.
Detailed Photos
Product Parameters
| Model | SAFM-920 | SAFM-1080 | SAFM-1200 | SAFM-1300 |
| Max paper size | 850x1050mm | 1080x1080mm | 1200x1450mm | 1265x1650mm |
| Min paper size | 300x300mm | 290x340mm | 340x420mm | 340x420mm |
| Paper weight | 100-500g/m² | 100-500g/m² | 105-500g/m² | 100-500g/m² |
| Laminating speed | 0-80m/min | 0-80m/min | 0-80m/min | 0-80m/min |
| Power | 35KW | 35KW | 37kw | 40KW |
| Total Weight | 7000kg | 7500kg | 7600kgs | 8600kg |
| Overall Dimensions | 9000x2000x1900mm | 9000x2200x1900mm | 10600x2400x1900mm | 11120x2600x1900mm |
