Metallurgy Material Spherical Fused Tungsten Powder for Coating

Product Description

Product Description
The porous material prepared from spherical tungsten powder has the characteristic of uniform pore distribution. By controlling the production process, the air permeability of the product can be controlled, and the cathode of high power pulse microwave tube, electron barium tungsten cathode and gas filter material can also be prepared. Due to the good fluidity of spherical tungsten powder, the coating obtained in the field of thermal spraying is more uniform and compact, and the product has good wear resistance.

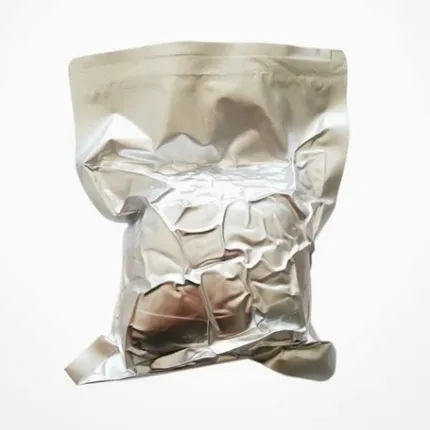

Packaging & Shipping
Specification
0-20μm, 15-45μm, 15-53μm, 53-105μm, 53-150μm, 105-250μm can be supplied according to customer requirements.

Trace metallic impurities
Element	Value(%wt)	MOA	Element	Value(%wt)	MOA
Cr	0.0006	ICP-MS	Co	0.0005	ICP-MS
As	0.0005	ICP-MS	Bi	0.0001	ICP-MS
Si	0.0005	ICP-MS	Mo	0.0016	ICP-MS
Al	0.0005	ICP-MS	Ca	0.0005	ICP-MS
Fe	0.0010	ICP-MS	V	0.0005	ICP-MS
Sb	0.0005	ICP-MS	Cd	0.0001	ICP-MS
Pb	0.0001	ICP-MS	Cu	0.0001	ICP-MS
Mg	0.0005	ICP-MS	Ti	0.0005	ICP-MS
Ni	0.0005	ICP-MS	P	0.0005	ICP-MS
Sn	0.0001	ICP-MS	K	0.0005	ICP-MS
Mn	0.0005	ICP-MS	Na	0.0003	ICP-MS
Nonmetallic impurities
Element	Value(%)	MOA	Element	Value(%)	MOA
C	0.0005	LECO	S	0.0008	LECO
N	0.0003	LECO	O	0.0100	LECO

Application
Used as the raw material of diamond drill bit and petroleum perforating charge for petroleum drilling, high temperature coating for combustion chamber and other wear-resistant and high temperature resistant parts.
Feature

1) Made by non-contact melting process;

2) The powder has high sphericity, no hollow powder; narrow particle size distribution, good fluidity and strong density;

3) The particle size range of Titanium Alloy Powders is 20-1000 μm;

4) Effective control of powder particle size distribution; sphericity and oxygen consumption through optimized technology.

5) Inert gas two steps treatment and compensation process can control the forming degree of EIGA producing atomizing alloy powder more efficiently.

6) High purity spherical alloy powder with high sphericity, good fluidity and few non-metallic inclusions.
