CE Building Material Shops Telescopic Articulated Lift Boom Lift
Basic Info.
Model NO.
boom lift
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Special Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Working Height
6-63m
Color
Customers′ Requirements
Weight
18500 Kg
Power
75kw
Overall Dimensions
10300*2200*1200mm
Product Name
Hydraulic Platform Lift
Transport Package
Box
Specification
10300*2200*1200mm
Trademark
everstar
Origin
China
Production Capacity
500000 Set/Years
Product Description
Product DescriptionProduct Parameters

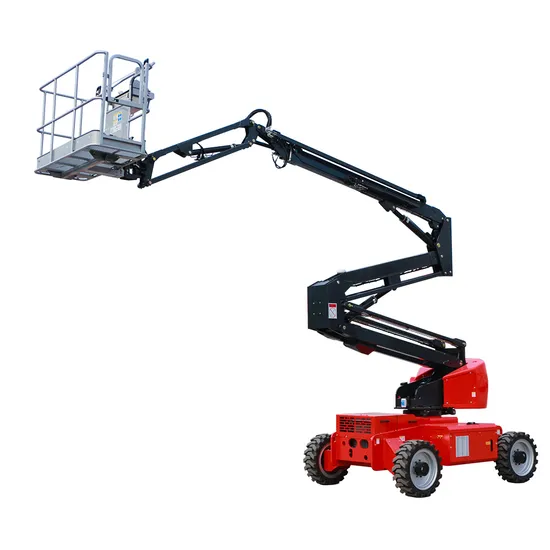

16-28m Diesel Articulating Boom Lifts
| Model | EAB16J | EAB18J | EAB20J | EAB22J | EAB26J | EAB28J |
| Max. Working Height(m) | 16.7 | 18 | 20.2 | 22 | 26.2 | 28 |
| Max. Platform Height(m) | 14.7 | 16 | 18.2 | 20 | 24.2 | 26 |
| Max. Lift Capacity(kg) | 230 | 230 | 230 | 230 | 230 | 230 |
| Max. Horizontal Outreach(m) | 8.1 | 9.55 | 11.6 | 12 | 15.4 | 17.28 |
| Stowed Length(m) | 6.72 | 7.26 | 8.23 | 8.54 | 10.65 | 11.7 |
| Stowed Width(m) | 2.28 | 2.28 | 2.38 | 2.38 | 2.48 | 2.58 |
| Stowed Height(m) | 2.47 | 2.4 | 2.5 | 2.55 | 2.85 | 2.97 |
| Platform Size | 1.83×0.76 | 1.83×0.76 | 1.83×0.76 | 1.83×0.76 | 2.44×0.91 | 2.44×0.91 |
| Wheel base | 2.4 | 2.4 | 2.4 | 2.4 | 3 | 3 |
| Drive speed stowed(km/h) | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Gradea bility | 45% | 45% | 45% | 45% | 45% | 40% |
| Engine Power(kw) | ≈36kw@2400rpm | ≈36kw@2500rpm | ||||
| Fuel tank capacity(L) | 100 | 100 | 100 | 100 | 100 | 110 |
| Weight(kg) | 7500 | 7800 | 8800 | 9380 | 15870 | 17000 |
32-47m Diesel Articulating Boom Lifts
| Model | EAB32J | EAB40J | EAB47J |
| Max. Working Height(m) | 32 | 40.1 | 47.5 |
| Max. Platform Height(m) | 30 | 38.1 | 45.5 |
| Max. Lift Capacity(kg) | 480 | 480 | 480 |
| Max. Horizontal Outreach(m) | 20.2 | 21.6 | 23 |
| Platform Size | 2.44×0.91 | 2.44×0.91 | 2.44×0.91 |
| Wheel base | 3.66 | 3.96 | 5.6 |
| Drive speed stowed(km/h) | 4.4 | 4.4 | 4.4 |
| Gradea bility | 40% | 40% | 40% |
| Engine Power(kw) | ≈54kw@2400rpm | ≈54kw@2400rpm | ≈81kw@2400rpm |
| Fuel tank capacity(L) | 151 | 151 | 200 |
| Weight(kg) | 18000 | 24500 | 26500 |
We also have many other models, including electric articulated boom lift, electric telescopic boom lift, diesel articulated boom lift, diesel telescopic boom lift and so on
Production Line
Company Profile
Packaging & Shipping
Our Advantages
Please contact me for exact price
