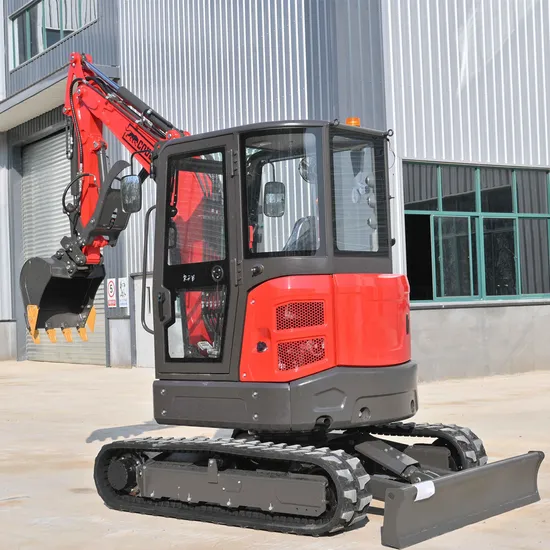

3500kg Mini Excavator with Bucket

Product Description

MAIN PARAMETERS
Emission Standard	Euro 5,EPA4
Make /Model	KUBOTA/D1703
Power /Rotation speed	18.5kw(25HP)@2200rpm
Number of cyinder	3
Type	In-line,water cooled,4-stroke,mechanical pump,normally aspirated
Max.torque
Displacement	97.4N.m/1500rpm1.642L
TRACK DRINING SYSTEM
Maximum Travel speed(High/low)	4.4/2.4km/h
Width ofsteel track shoe	300mm
Carrier roller(Each side)	1
Supporting roller(Each side)	4
PERFORMANCE PARAMETER
Standard Budketcapacity	0.12m3
Swing speed	12rpm
Maximum Gradeability	58%(30°)
Ground pressure	32Kpa
Maximum Bucket digging force	30.4KN
Maximum Arm digging force	18.2KN
Hydraulic system pressure	22.5Mpe
Machineweight	3810kg
Boom length	2535mm
Arm length	1400mm
Fuel tank capacity	40L
Hydraulic oil tankcapacity	44L
Engine oil capacity	7L
Radiator capacity	3.8L
Final drive	2*0.7L
MIA CHINE SIZE
Overall dimension (L*W*H)	4915mm*1720mm*2525mm
Axle base(Track length on ground)	1670mm
Length of rubber track	2154mm
Track gauge	142.0mm
Minimum Ground clearance	295mm
Swing radius at tail	860mm
Swing radius at front	2538mm
Height of blade	350mm
WORKING RANGE
Maximum Digging height	4800mm
Maximum Dumping height	3406mm
Maximum Digging depth	3208mm
Maximum Vertical digging depth	2957mm
Maximum Digging distance	5480mm
Maximum digging distance (on ground)	5359mm
Minimum swing radius	2530mm
Max.height when min.swing radius	3655mm
Maximum Lifting height of blade	365mm
Maximum Cutting depth of blade	385mm
Boom swing angle(Left/Right)	55°/65°

COUGARS 3800KGS Mini Crawler Excavator Unleash the raw power and relentless efficiency of the COUGARS 3800KGS Mini Crawler Excavator. Engineered to effortlessly conquer the most demanding tasks, this excavator combines superior components with intelligent design for unmatched performance.
Driven by a trusted Kubota diesel engine, this excavator ensures seamless operations with potent hydraulics. Its compact 3.5T size makes it the perfect versatile companion, delivering impressive break-out force and digging power while being easily maneuverable across diverse job sites.
The COUGARS excavator lineup is celebrated for its outstanding performance and exceptional value. Boasting an impressive 10kN excavating force and a standard 400mm bucket, this machine is primed to tackle any challenge.
Operating the COUGARS 3800KGS Mini Crawler Excavator is a simplified experience, thanks to intuitive joystick and lever controls. Its robust steel construction, crafted with CNC laser precision, promises unparalleled durability and dependability.
With comprehensive functionality, including traverse, swing, boom swing, and dig, this excavator stands as a versatile powerhouse. It supports a variety of attachments like augers, rock breakers, and grapples for expanded capability.
Enjoy peace of mind with a straightforward key start ignition and a reassuring 1-year warranty. COUGARS Machinery is committed to providing premium quality at accessible prices, making these excavators perfect for both commercial operators and small property owners alike.
Powered by a renowned Kubota water-cooled diesel engine, the COUGARS 3800KGS Mini Crawler Excavator excels in performance and fuel efficiency. It's the prime choice for small to medium enterprises aiming to optimize their investment returns.
Featuring high specifications and top-tier components, the COUGARS 3800KGS Mini Crawler Excavator shines brightly against rivals. Its upgraded heavy-duty hydraulic oil pump ensures prolonged operational lifespan, while authentic USA Eaton drive and swing motors offer smooth and controllable operation.
The hydraulic control valves enable fluid operation, and with joystick controls complemented by a full-weather cabin, operators can enjoy a comfortable and pleasurable experience.
Constructed to the utmost standards, the COUGARS 3800KGS Mini Crawler Excavator is fashioned from CNC laser-cut steel for precision and strength. Its proven design assures consistent performance and reliability, making it an unbeatable choice for any task.

Maximize your excavator's potential with an array of premium attachments and accessories. COUGARS® excavators incorporate a quick coupling design, enabling swift attachment changes tailored to the task at hand. With options for purchasing or renting additional attachments, your machine's capabilities are boundless.
Every machine comes equipped with a robust 400mm bucket, laying a firm groundwork for your excavation needs. For specialized applications, a variety of optional attachments are available to further enhance your utility.
Buckets for Trenching and Bulk Materials Movement
The Series 35 machines can accommodate a variety of bucket sizes, ensuring efficient trenching and bulk material handling to meet diverse operational demands.
Ripper Attachment
Easily penetrate hard ground and navigate tough tree roots with the ripper attachment. Its durable, hardened steel ripper tip, fortified with robust steel plates, guarantees resilience and reliability for the most challenging tasks. Augers for Digging Holes Equip your excavator with an auger drive for rapid hole digging across multiple applications, including tree planting, foundation development, and post installation.
Rock Breaker Effortlessly fragment large rocks into manageable pieces with the rock breaker attachment, which also excels at breaking old concrete driveways and paths into movable sections. The attachment connects via the quick coupling hitch, utilizing auxiliary hydraulic connections for efficient operation. Actuating Grapple
Introducing the highly efficient actuating grapple attachment, which transforms your excavator into a versatile 4-in-1 bucket tool. Perfectly designed for forestry applications, this attachment empowers you to easily grip, lift, roll, and maneuver objects into precise positions. Its exceptional performance shines when clearing brush, lifting hefty logs, and deftly handling branches. Please be aware that the grapple attachment requires a slightly longer installation time. This is due to its operation relying on the excavator's ram, necessitating the use of pins to be inserted and removed, as opposed to the more straightforward quick hitch connection. Excavator Rake
The excavator rake attachment is your ideal partner for efficiently managing green waste. Whether you need to pile it up for effective decomposition or prepare it for burning, this tool delivers unmatched convenience. Additionally, it serves as a formidable solution for eradicating troublesome vegetation, such as lantana, ensuring a cleaner and more manageable environment. In the world of machinery, compromising on quality is simply not an option. COUGARS excavators are meticulously engineered to endure, crafted from only the highest quality materials. When you choose COUGARS, you're investing in a durable machine destined to last a lifetime.
Unleash the extraordinary power and unmatched versatility of the COUGARS 3800KGS Mini Crawler Excavator, specifically crafted for the USA market. Boasting a compact design and powered by a reliable Kubota engine, this exceptional excavator offers a wide array of attachments to cater to your every excavation need. It stands as the ultimate choice for efficiency and excellence in excavation projects.
