Product Description

SZGH Super Promotion Diamond Cutting Alloy Wheel Rim Repair Cnc Lathe Machine Wholesale

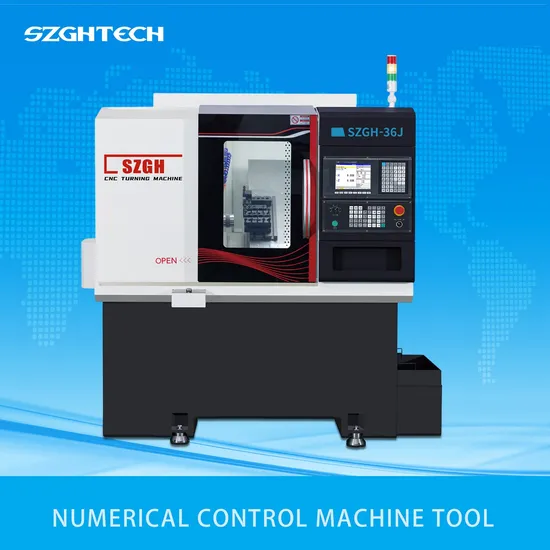

Product Overview SZGH-36J is suitable for batch production of copper, iron, aluminum and stainless steel bars within 35mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6.It is widely used in hard rail CNC lathes, replaced by 46 large CNC lathes with small parts, etc., to achieve the effect of improving efficiency and cost-benefit ratio.
Standard Configuration

Technical parameter item		Unit	Standard value	Max value
Processing capacity	Max. diameter of bar bore/ bar capacity	mm	35	-
	Max. particle diameter (disk type)	mm	250	300
	Max. length of workpiece	mm	210	230
	Cutting amount of stainless steel on one side	mm	2	3
	Machining accuracy of the workpiece	mm	±0.01	-
	Surface roughness	Ra	1.6	-
	the height of center tool holder	mm	40	-
	Turning Diameter	mm	350	-
	Square Knife Specifications	mm	16	-
Travels	X-axis effective travel (diameter)	mm	600	-
	Z-axis effective travel	mm	230	-
Feed	X-axis rapid traverse	m/min	25	30
	Z-axis rapid traverse	m/min	25	30
	X-axis servo-motor power	kW	1.3	-
	Z-axis servo-motor power	kW	1.3	-
Spindle	Max.Spindle Speed	rpm	3500	4000
	Spindle Motor Power	kW	3	-
	Spindle nose taper	-	A2-4	-
	Support hydraulic chuck size	inch	6	8
Dimensions	Dimensions	mm	1750*1400*1800	-
	Total Weight	kg	1800	-

Machine tool specifications and component items		Specification	Standard	Optional
Part Specifications	Screw	25mm	Taiwan ball grinding precision grade	-
	Guide rail	25mm	Taiwan H-class linear guide rail	-
	Bearing	-	Wuxi two-axis Harbin high-speed angular joint fusion bearing
	Spindle motor	3kW	Variable frequency drive type	3.7kW servo spindle
	Feed servo	1.3kW	SZGH Speed Servo	-
	CNC Control	-	SZGH	SZGH
Machine specifications	Bed Type	30°	Slant Bed	-
	Base form	-	Heavy-duty anti-deformation patented base	-
	Clamping method	-	Hydraulic clamping	-

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail. Features of Matched CNC Controller:
1)2-5 Axis Fully English Type CNC lathe controller;
2) 800x600 8.4 inch real color LCD displayer;
3) Electric Turret & Binary code turret,Max: 99 pcs tools;
4) Support ATC , Macro function and PLC function;
5) Max speed is 60m/min, feeding speed is 24m/min;
6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing;
7) High anti-jamming switch power(100V-240VAC 50Hz/60Hz -> 24VDC);
8) 64MB Memory , 56M user store room;
9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade;
10) Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V;
11) 32 bits ARM microprocessor+FPGA Technology;
12) Basic I/O: 36X36, can be edited freely;
13) Cutter offset.
FAQ
1. Who are we?
We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independenttechnical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome tovisit our factory.
4.What is the delivery time?The full series of standard models are in stock. For a customized one, it depends.
5.What services can we provide?1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean, Italian, and so on.
6.What is the warranty period?After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

7.How can I choose the most suitable machines?Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.

8.Does your cnc support booting logo exchange?Yes, no problem.
