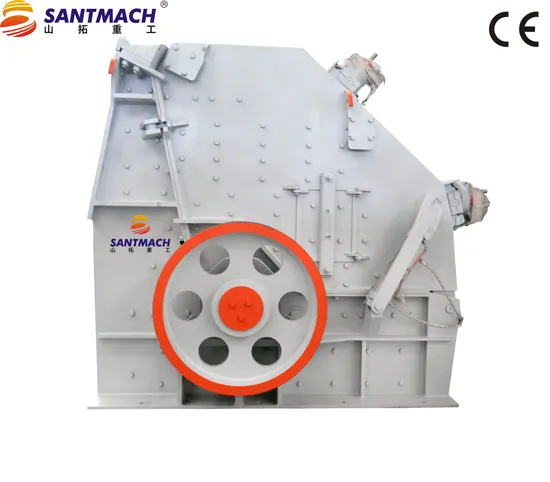

Superior Performance Stone Crushing Equipment 200tph PF1210 Impact Crusher for Aggregate Crushing Line

Product Description

Detailed Photos
Product Advantages Impact crusher is also called counterattack crusher. It is mainly used for material processing of metallurgy, chemical industry, building materials, hydropower and other materials which often need to be relocated, especially for the operation of flowing stone materials such as expressway, railway and Hydropower projects. Various configurations can be adopted according to the types of raw materials, the scale of processed materials and the requirements of finished materials.
The impact crusher can handle materials with side length less than 100-500 mm. It has the advantages of high crushing ratio and cubic granule after crushing, with a maximum pressure of 350 MPa. It is widely used in building materials, ore crushing, railway, highway, energy, transportation, energy, cement, mining, chemical industry and other industries for medium and fine crushing materials. The size of the discharging granularity can be adjusted, and the crushing specification is diversified.
1. Structural design of counterattack crusher is compact and reasonable, and production technology makes the equipment smaller than other crushers of the same specification. It can reduce transportation costs, reduce installation links, simplify operation process and save cost and investment.
2. The inlet and outlet have been enlarged, and the crushing chamber mouth has also been deepened, which can accommodate more stone materials and enlarge the diameter of raw materials. Therefore, the output of finished products of the equipment has increased more than three times than that of the traditional crusher.
3. The structure of plate hammer is designed by a new technology, and the material is selected very well, so that it has impact resistance, impact resistance and abrasion resistance. It can increase its crushing ability by about 5 times, and can be adapted to stone materials with greater hardness.
4. The impact crusher has good stone shaping function. The crushed stone material has beautiful grain shape, solid quality, cubic shape and few needles and flakes, and its size can be adjusted freely according to user's needs, so it is more flexible and convenient to use.
5. Energy saving, consumption reduction and environmental protection are the original design intention of the equipment. There is basically no dust flying out and no noise pollution in the whole operation process. There is no waste of energy consumption in the whole production process, and the energy saving effect is very good.
6. The impact crusher also has the advantages of long service life, low failure rate, large investment income, stable operation, strong environmental adaptability, high crushing efficiency, high comprehensive efficiency and so on. It is favored by customers in the market.
Product Parameters

Model	Specifications(mm)	Input port size(mm)	Input size(mm)	Capacity(t/h)	Power Model	Power(kw)	Weight(t)	Length*width*high (mm)
PF-1007	Φ1000×700	400×730	300	35-50	Y250M-6	37	9.5	1800×1600×1800
PF-1010	Φ1000×1050	400×1080	350	50-80	Y315S-6	75	14	2340×2007×2500
PF-1210	Φ1250×1050	400×1080	350	70-120	Y315L1-6	110	17	2582×2053×2809
PF-1212	Φ1250×1200	400×1250	350	70-140	Y315L2-6	132	17.5	2582×2203×2809
PF-1214	Φ1250×1400	400×1430	350	80-160	Y315L2-6	132	22	2582×2403×2809
PF-1315	Φ1300×1500	680×1520	350	90-220	Y2-355M2-6	200	26	2930×2761×3053
PF-1320	Φ1300×2000	680×1570	350	110-350	Y2-355M2-6	280	28	3340×2950×3000

Product Description Impact crusher is also called counterattack crusher. It is mainly used for material processing of metallurgy, chemical industry, building materials, hydropower and other materials which often need to be relocated, especially for the operation of flowing stone materials such as expressway, railway and Hydropower projects. Various configurations can be adopted according to the types of raw materials, the scale of processed materials and the requirements of finished materials.
The impact crusher can handle materials with side length less than 100-500 mm. It has the advantages of high crushing ratio and cubic granule after crushing, with a maximum pressure of 350 MPa. It is widely used in building materials, ore crushing, railway, highway, energy, transportation, energy, cement, mining, chemical industry and other industries for medium and fine crushing materials. The size of the discharging granularity can be adjusted, and the crushing specification is diversified.
