PVC Crust Foam Board Making Machine for Door Board

Product Description

Product Description
PVC WPC Foam Door Board Machine:
As compare to wood, WPC Foam Boards don't get affected by the water. WPC Crust Foam Board has long service life and wooden appearance. The looking, touch and texture are similar to wood, but it has better dimensional stability. WPC Foam Boards can be used for a long time, without warping, cracking, rotting, wood knurl and twill. The texture of WPC Foam Boards is hard and the surface hardness is high. The WPC Foam Boards are wear resistant and can be made into different wood colors, according to customer's requirements.
Size:
Board width: 1220mmBoard length: 2440mmBoard thickness: 3-40mmDensity: 0.38-0.8g/cm3
PVC WPC Solid Door Frame Machine:
WPC door frames are built to be as dense as wood, can be worked upon with the same technique and tools as used / adopted for natural wood, poses a high screw holding and nail holding capacity. These door frames come with various advantages over natural wood as illustrated below, but most importantly cost effectiveness, water - termite - acid proof.
Size:
70*45mm
95*45mm
95*60mm
100*63mm
120*60mm



Flow Chart
PVC WPC Foam Board Machine:
Mixer→Loader→Twin-Screw Extruder→Mould→Calibration Platform→Cooling bracket→Haul off→Cutter→Stacker
PVC WPC Soild Door Frame Machine:
Mixer→Loader→Twin-Screw Extruder→Mould→Calibration Cooling Tank→Haul Off→Cutter→Stacker→Crusher→Miller
Machine Description
1.Double screw extruder is equipped with Bimetallic screw/barrel which could increase the lifetime of screw/barrel.
2.Calibration platform is water-circulated by cooling water supplied by chiller
3.Equipped with automatic robotic stacker that could reduce labor cost
4.The whole line adotps Siemens motor,ABB inverter,Siemens contactor/switch,RKC/Omron temperature controller,etc
5.We supply whole system including production line,mixer,crusher,miller,chiller,air compressor,mould temperature controller and all the required auxiliary machines.
Machine Pictures
Mixer
Extruder
Calilbration Platform
Cooling Bracket
Haul Off&Cutter
Automatic Stacker

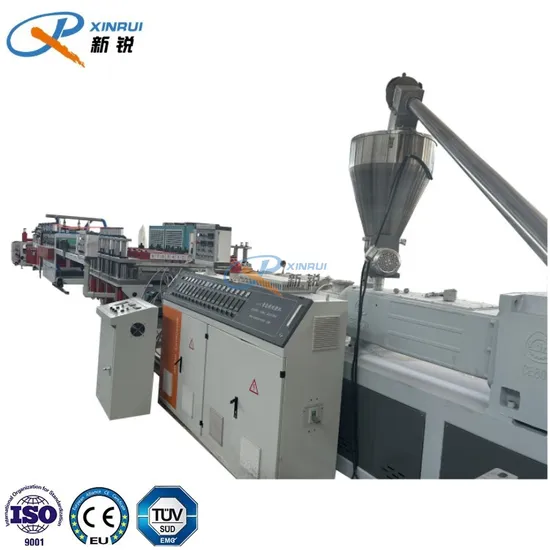

Whole Line:
ONLINE LAMINATION MACHIEN
PVC WPC Solid Door Frame Making Machine
Crusher&Miller
Chiller
Certifications
Delivery
