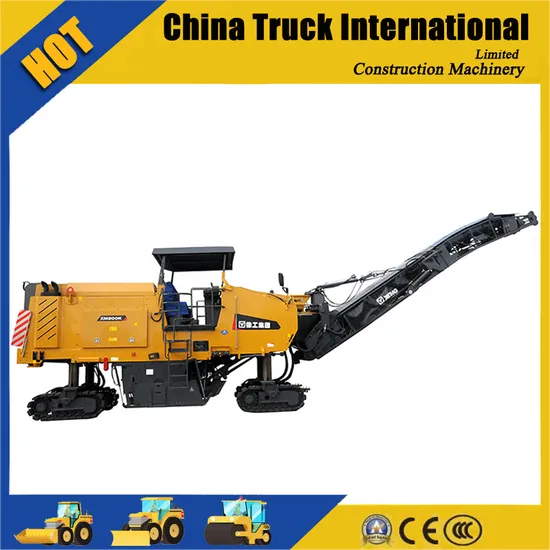

High Quality Asphalt Road Milling Machine Xm200K

Product Description

High Quality Asphalt Road Milling Machine xm200K
Features
1.Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
2.Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
3.The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.
4.The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
5.Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
Specification

MODEL		Unit	XM200K
Engine
	Engine model		QSX15III
	Rated power /speed	Kw/rpm	447/2100
Performance parameters	Operating speed	m/min	0-30
	Travel speed	Km/h	0-4.5
	Gradeability	%	80
	Ground clearance	mm	≤320
	Operating weight	Kg	32500
Operating parameters	Max.milling and mixing width	mm	2000
	Max.milling and mixing depth	mm	300
	Number of tools		168
	Milling drum diameter	mm	980
	complete dimension(L*W*H)	mm	7530*2500*3000
