Stone Engraving Machinery Tool
| US$7,500.00-9,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DLM-2513-1
Function
Cutting
Application Material
Marble
Automation
Automatic
Control
CNC
Motor Power
Small Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE, ISO
Current
AC
Application
Advertising, Stone Industry
Customized
Customized
Spindle
5.5kw / 7.5kw
Table
T-Slot Steel Table and Water Tank
Motor
Servo Motor
Controller
Taiwan Syntec
Chiller
Cw 5000
Rail
25mm Hiwin
Rack
Helical Rack
Ball Screw
High Precision
Transport Package
Plywood Box
Specification
2500mm*1300mm
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
500 Sets/ Year
Product Description

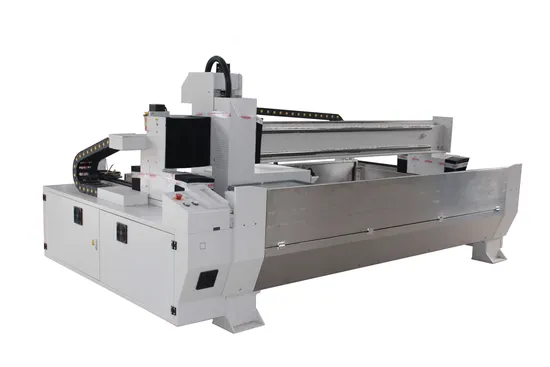

CNC Marble Engraving and Cutting Machine DLM-2513-1Applicable industries:
Stone working: engraving various granite, bluestone, marble, gritstone, soapstone ceramic tile and so on etc.
Marble cnc carving machine for Metal working also: can engarve on various colorful metals like aluminum, brass and so on.
Technical Parameter:
| Description | Parameter |
| X,Y working area | 2500mm*1300mm |
| Z working area | 200mm |
| Table design | heavy duty |
| Resolution | 0.05mm |
| Lathe structure | Seamless welded steel structure |
| X,Y structure | Pack and pinion transmission, Linear orbit |
| Z structure | Imported ball screw |
| Max. idling speed | 40m/min |
| Spindle motor power | 5.5Kw/ 7.5KW / water cooling |
| Spindle rotate speed | 0-24000r/min |
| Working voltage | AC380V/50Hz |
| Working mode | Servo motor |
| Driver | Servo |
| Command | G code, HPGL, U00, mmg, plt |
| Operating system | Taiwan Syntec |
| Interface | USB |
| Diameter of cutter | φ3.175 , φ6 φ, 12.7mm |
| Dust-collect function | Yes |
| Working-holding | By clamp |
| Net weight | 3000KG |
