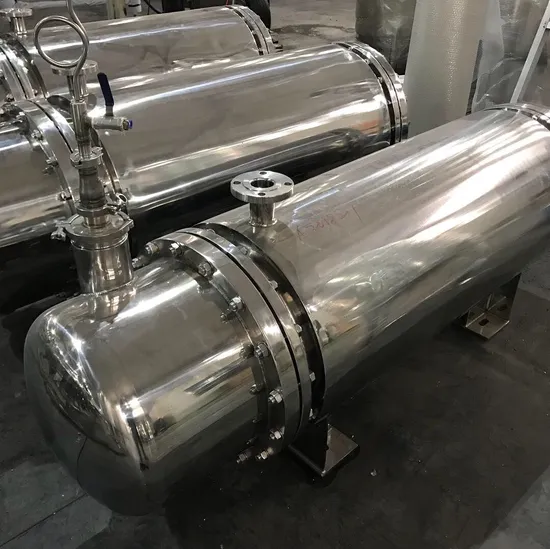

Titanium Heat Exchanger Shell and Tube Evaporator Sea Water Condenser

Product Description

Product Description
Features:
1.High efficient and energy conservation: heat transfer coefficient of the heat exchanger is 6000-8000W/m2.0C.
2.Long service life: all parts are made of stainless steel
3.Fast heat transfer speed: resistance to high temperature (400 ºC), high voltage (2.5 Mpa).
4.Compact structure, small footprint, light weight, convenient installation, saving investment in civil construction.
5.Flexible design,saving money. complete specifications, practical and targeted,
6.Easy operation , long cleaning cycle and convenient cleaning, low maintenance cost
7.Wide application fields, which can be widely used in the fields of thermoelectric, factory, petrochemical, urban central heating, food and medicine, energy electronics, mechanical light industry, etc.

Before shipment, each heat exchanger shouldbe tested with strict test and program file.
Fluid static test Fuel penetration test X ray analysis Surface photometer to ensure that the surface roughness of mechanical and electrolytic polishing Ra below 0.25um Computer verification performance Detection of light and endoscopy

Operation
Shell Design Pressure	0.6MPa 1.0MPa
Shell Design Temperature	150ºC
Tube Desian Pressure	0.6MPa 1.0MPa
Tube Desian Temperature	150ºC
Tube No.	1/2/4
Material
Shell	304, 316L
Tube	304, 316L
O-ring	EPDM, PTFE, silicon
Connection
Tube connection	Clamp, Flange, Screw
Shell connection	Clamp, Flange
Surface Finish
Finish type	Mechanical / electrolytic polishing
Polishing precision	0.4um

Normal Model And Main Technical Parameters

Diameter	Tube No.	Pipe No.	Trans surface Pipe lenght(mm)
			1500	2000	3000	4000	6000
159	L	14	1.5	2	3	4.5	6.6
219	I	26	3	4	6	8	12
	II	26	3	4	6	8	12
273	I	44	5	7	10	14	21
	II	40	5	6	9	12	19
325	I	60	7	9	14	19	28
	II	56	6	9	13	17	26
400	I	119	14	18	28	37	55
	II	110	13	17	26	34	50
500	I	185	22	29	45	55	85
	II	170	20	27	40	55	85
600	I	277	33	43	60	85	125
	II	266	31	41	60	80	125
700	I	379	44	59	90	120	125
	II	358	42	56	85	110	165
800	I	511	60	80	120	160	240
	II	488	57	77	115	150	230
900	I	649	76	102	150	200	305
	II	630	73	99	145	195	295
1000	I	805	95	126	185	250	375
	II	792	92	124	185	245	370
