Factory Direct Sales Metal CNC Lathe Ck6180 Horizontal CNC Lathe

Product Description

Product Description
cnc machine manufacturing-processing-machinery cnc lathe machine tool automatic cnc lathe CNC Lathe Use: Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.

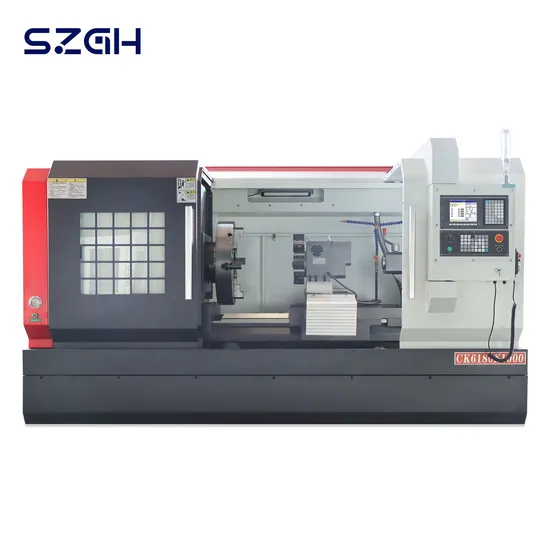

CNC Lathe Machine CK6180 Series
Operated with Computer Numerical Control (CNC) systems and provided with precise design instructions, CNC Lathes are machines where the material or part is clamped and rotated by the main spindle, while the cutting tool that work on the material, is mounted and moved in various axis.
CNC Lathes are normally used for machining parts, where the material / part is clamped and rotated whereas the cutting tool is stationery mounted for OD (Outer Diameter) and ID (Inner Diameter) operations, e.g. shafts and pipes. They are ideal for parts that have same symmetry around an axis that could be chucked up (i.e. radially clamped) in the spindle. CK6180 operates on 2-axis and the tool is located in a fixed position at 8 to 24 station turret. The rotating action of the part is called "turning", hence certain types of CNC Lathes are called CNC Turning Machines.
SZGH-CK6180: 3800*1700*1750mm
1)SZGH 130 Servo Motor Driver 3.8KW,15NM;
2)ZGH 2 Axis CNC Absolute Lathe Controller;
3)11KW Spindle Servo Motor ;
4)8 Station Electric Turret;
5)400MM 3 Jaw Manual Chuck;
Machine Features
FEATURES OF MATCHED CNC CONTROLLER:
(1.)2-5 Axis Fully English Type CNC lathe controller;
(2.)800x600 8.4inch real color LcD displayer;
(3.)Electric Turret & Binary code turret,Max: 99 pcs tools;
(4.)Support ATC , Macro function and PLC function;
(5.)Max speed is 60m/min, feeding speed is 24m/min;
(6.)Adapted servo spindle can realize spindle continous position,
(7.)High anti-jammingswitch power(100V-240VAC 50Hz/60Hz→ 24VDC);
(8.)64MB Memory,56M user store room;
(9.)With USB interface it supports file operation in flash disk,system confiquration and software upgrade
(10.)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V
(11.)32 bits ARM microprocessor+FPGA Technology;
(12,)Basic 1/0:36X36, can be edited freely;
(13,)Cutter offset :
Company Profile
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
WHY CHOOSE US?
QUALITY COMMITMENT:
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates
FAQ
Q1. Who are we?
A1: We are based in Guangdong, which provides CNC total solutions& cnc lathe machine&milling machine
technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
Q2. How can we guarantee the quality?
A2: Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
Q3. How does your CNC machine work with my production schedule?
A3: Our machine tools use our complete set of CNC systems, and we can also change the corresponding configuration according to your
needs, such as turrets, kits, etc., to solve the trouble of debugging and refitting after you receive the goods in advance.
Q4. What services can we provide?
A4: 1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Italian, and so on.
Q5.What is control mode for feeding Axes?
A5: Our Normal CNC support Pulse+Direction signals for feeding axes drivers; Our Modbus CNC support EtherCAT /Powerlink modbus for feeding axes drivers.
Q6.What is control mode for spindle axes?
A6: There are dual analog voltage outputs(0~10V) for speed control of spindle axis. Our Modbus CNC also support Pulse speed spindle, also can use pulse to control speed of spindle servo system.

Q7.Does your cnc support ATC function?
A7: Yes, our CNC lathe system can support most of turret, like Eletric turret,servo turret,counting turret,etc; We can edit special macro program & plc for special turrets also; And our CNC milling system support Linear type , umbrella type, arm type, turret type tool magazines.
Q8.Does your cnc support booting logo exchange?
A8: Yes, no problem.
