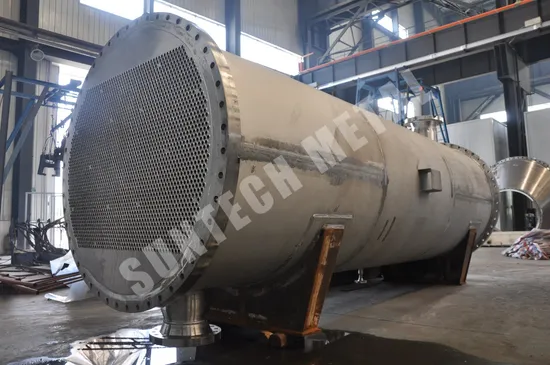

Titanium Sb265/304 Gr. 2 Seawater Gasification Heat Exchanger

Product Description

Item Name	Titanium SB265 Gr.2/304 Seawater GasificationHeat Exchanger
Application	Seawater GasificationIndustry
Tubesheet Material	SB265 Gr.2/F304L Clad
Tube Material	SB265 Gr.2
Shell Material	F304
Diameter	OD1500mm
Length	4000mm
No. of Tubes	1600 pcs
Tube Wall Thickness	0.8mm
Shell Thickness	86mm
Surface	900sqm
Weight	47774Kg
Pressure	SHELL SIDE 1.77/FV MPa
Media	Sea Water

Nanjing Suntech provides high grade pressure vessel, reactors, heat exchangers, heaters, towers, tanks, columns, condensers, reboilers, separators, evaporators made of Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel and clad metals, designed and fabricated according to ASME U, PED, TEMA, API650, EN13445 and other codes. These products have been widely used in such fields as petro-chemical, chemical, salt manufacturing, pharmacy, metallurgy, power, electronics, sea-engineering and environment protection.
Our mill has around 40 welders qualified for 252 types of welding, including SAW, STAW, GTAW, GMAW) and 9 persons for non-destructive inspection (including PT, UT, MT, PT), and 5 NDE persons are qualified with the requirements of ASME.
Manufacturing area is 14000m2(1st phase) and 15000 m2(2ND phase), among which, there are more than 1000M2 isolated workshop on non-ferrous metal welding. Rolling capacity is 80mm maximum and crane
capability is 100 tons maximum.
