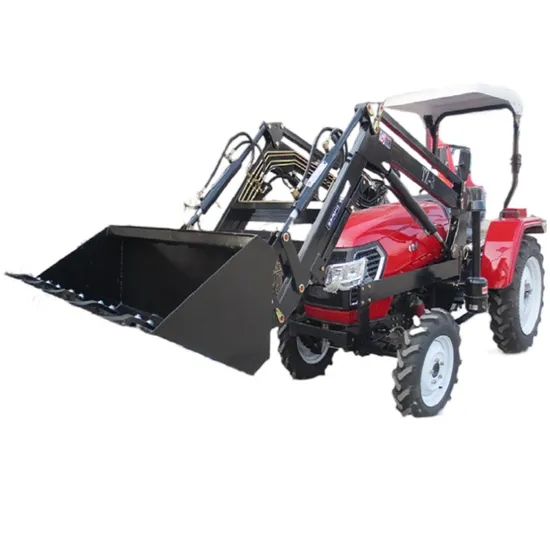

Chinese Manufacturer of Front End Loader for Different Kinds of Tractors
| US$2,000.00-4,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TZ-8
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Hydraulic
Arbor Configuration
Hydraulic Pump Drive
Certification
CE
Color
Black
Warranty
1 Year
Tractor Power Supply
25HP to 180HP
Max Dump Height
1800-2400mm
Max Dump Distance
1000mm
Bucket Rollback Angle
42 Degree
Max. Scraping Depth
160mm
Max. Unload Angle
46 Degree
Lifting Time to Pivot Pin
8 S
Descending Time
4 S
Bucket Volume
0.2-0.65 M3
Transport Package
Steel Frame or Plywood Case
Specification
TZ series
Origin
China
HS Code
8430699000
Production Capacity
100000sets/Year
Product Description
Product DescriptionFront End Loader For Kinds of Tractors, such as 25hp/30hp/35hp/40hp/50hp/60hp/70hp/80hp/90hp/100hp/120hp/130hp/150hp.etc.
Product Parameters
Front end loader specifications:
| Model: | TZ-3 | TZ-4 | TZ-8 | TZ-10 | TZ-12 |
| Tractor power required: | 20-30hp | 35-50hp | 50-70hp | 80-90hp | 100-130hp |
| Max dump height: | 1800mm | 2000mm | 2200mm | 2400mm | 2800mm |
| Max dump distance: | 900mm | 900mm | 960mm | 1000mm | 1100mm |
| Bucket rollback angle: | 42° | 42° | 42° | 42° | 42° |
| Max scraping depth: | 100mm | 140mm | 160mm | 160mm | 160mm |
| Max unload angle: | 47° | 47° | 46° | 46° | 46° |
| Lifting time to pivot pin: | 7S | 7S | 8S | 8S | 10S |
| Descending time: | 3.5S | 3.5S | 4S | 4S | 10S |
| Bucket volume | 0.2m³ | 0.23m³ | 0.43m³ | 0.6m³ | 0.65m³ |
| Bucket option: | 4 in 1 bucket | 4 in 1 bucket | 4 in 1 bucket | 4 in 1 bucket | 4 in 1 bucket |
| Total size with tractor: | 4.1*1.6*1.6m | 4.1*1.6*1.6m | 4.9*1.75*2.5m | 4.9*1.8*2.5m | 5.2*1.8*2.6m |
Detailed Photos
Workshop Show
FAQ
1, What tractors can you match the attachments tools?--- We can supply the tools for tractors from 25hp to max 260hp.2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, if only one tractor without cab, we will make plywood case with steel frame packing to pack the tractor and do LCL shipment; If the tractor with cab, we suggest to use one single container to ship it.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.7, Any free spare parts supply for the tractor?--- Normally, we will give extra oil and diesel fitlers for spare parts.But it depends the order quantity.
