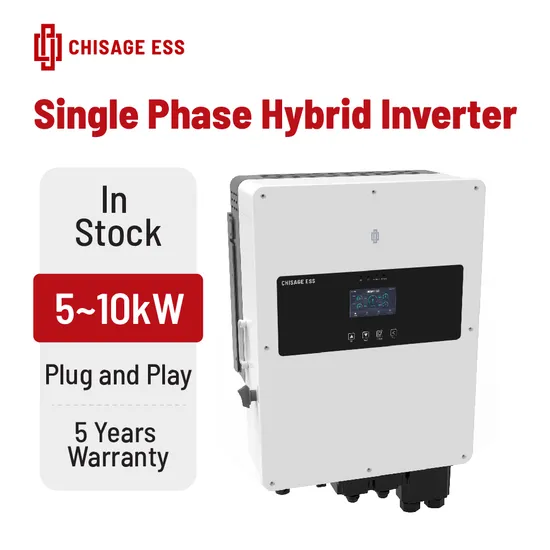

China Solar Renewable Energy 5kw 6kw 8kw 10kw Pure Sine Wave Home Energy System Integrated Hybrid Power Inverter for Solar Panel System Without Battery

Product Description

support different power inverters parallel connection, Max. 20pcs inverter off grid parallel connection, Compatible with multi-brand lithium batteries
High Quality 5kw 6kw 8kw 10kw Single Phase Hybrid Inverter Grid Tied off Grid 48V Solar Home System Inverter for Solar Panel Energy System
pure sine wave output and EPS power, low voltage battery input, support on and off grid mode switch, colorful 5 inch touch LCD
Specification

Technical Data
Model	Jup-3G2-LE	Jup-5G2-LE	Jup-6G2-LE	Jup-8G2-LE	Jup-10G2-LE
Battery Input
Battery Type	Lead-acid or Li-ion
Battery Voltage Range (V)	40-60
Max. Charge Current (A)	70	120	140	190	210
Max. Discharge Current (A)	70	120	140	190	210
Charging Curve	3 Stages/Equalization
Number of Battery input	Optional
Charging Strategy for Li-ion Battery	Self-Adaption to BMS
PV String Input
Max. DC Input Power (W)	4,500	7,500	9,000	12,000	15,000
PV Input Voltage (V)	370(125~500)
MPPT Range (V)	150~425
Start-up Voltage (V)	120
PV Input Current (A)	17	17+17	17+17	26+26	26+26
Max. PV Isc (A)	20	20+20	20+20	34+34	34+34
No. of MPPT Trackers	1	2	2	2	2
No. of Strings per MPPT Trackers	1	2/2	2/2	2/2	2/2
AC Output
Rated AC Output Power and UPS Power (W)	3,000	5,000	6,000	8,000	10,000
Max. AC Output Power (W)	3,600	6,000	7,200	9,600	12,000
Peak Power(off grid)	2 times of rated power, 10s				1.8 times of rated power, 10s
AC Output Rated Current (A)	13.04	21.73	26.08	34.78	43.47
Max. AC Current (A)	15.65	26.08	31.3	41.73	52.17
Max. Continuous AC Passthrough (A)	40	50	50	50	60
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage (V)	50/60Hz,220/230Vac(single phase)
Grid Type	single phase
Current Harmonic Distortion	THD<3%(Linear load <1.5%)
Efficiency
Max. Efficiency	97.90%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
PV ARC Fault Detection	Optional
Output Over Voltage Protection	DC Type II/ AC Type III
Certifications and Standards
Grid Regulation	CEI 0-21,VDE-AR-N 4105,NRS 097,IEC61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11
EMC/Safety Regulation	IEC/EN 62109-1 IEC/EN 62109-2,IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range (ºC)	-45~60,>45 Derating
Cooling	Smart Cooling
Noise (dB)	≤45
Communication with BMS	CAN, RS485 34
Weight (kg)	34/35
Dimensions (mm)	514W×665H×292D
Protection Degree	IP65
Installation Style	Wall-mounted

Why Choose Us IP65 waterproof and dustproof protection degree, Support battery charging/discharging according to the time setting, Independent AC input port for diesel generator
FAQ
·Q1: Are you a factory or trading company? We are a factory specialising in the field of solar inverter and solar energy storage system. With advanced intelligent production lines and an experienced production team.
Chisage ESS prioritizes innovation and reliability, committed to delivering top-tier solutions to our customers. ·Q2: What is the MOQ? The MOQ is 1 unit, and for items in stock, we will ship within 7 business days. ·Q3: Do you accept custom products? Yes, OEM and ODM is supported.we have a professional R&D team with over 20 years of experience and a wealth of customisation experience to provide you with professional customisation support including but not limited to packaging, functionality etc. ·Q4: What is your after-sales service? a. More than 10 after-sales team members to provide online service 7x24 hours a day throughout the year
b. We offer product replacement for quality issues during the warranty period.
c. We provide flexible training and warranty services, strictly adhering to the warranty terms.
d. For purchases of more than 5000 units, we set up a technical support centre in your city for comprehensive support. ·Q5: What's the payment term? We support a variety of payment methods, such as T/T, L/C, Ali-baba Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.
