Mechanical Pressure Control Switch Pressure Diaphragm Piston Controller Oil Pressure Hydraulic Pressure Switch 100bar 200bar 30bar Normally Open Normally Closed

Product Description

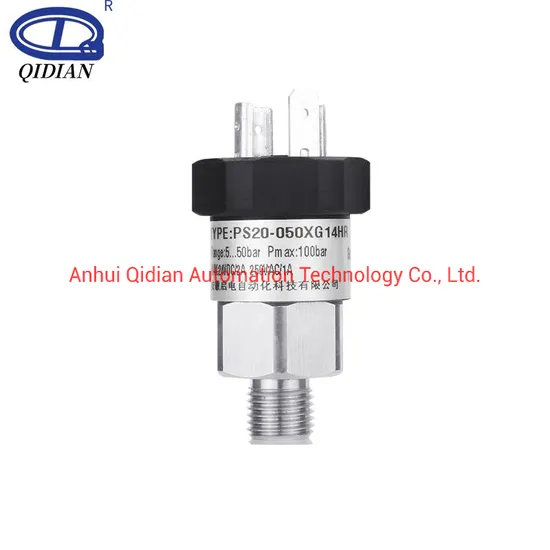

PS20 Mechanical pressure switch 0-400Bar Normolly open + Normolly close Relay signal output
Principle
The built-in piston is connected with the precision spring. When the pressure changes, the expansion and contraction of the spring changes accordingly. When the force reaches the set value, it will trigger the preset mechanical structure and send a switch signal.
Features
Compact structure, using DIN standard plug, extremely convenient wiring, wide measuring range (0...200bar), over
High load capacity (up to: 900 bar), high repeatability, with normally open or normally closed contacts, contact plated Gold, large contact capacity. Can be used for: water, oil, gas pressure measurement.

Measurement Range	0-400Bar	Hysteresis	15% Customezied 1%-5%
Differential	3%	Output	Normolly Open+Normolly close Relay signal
Medium Temperature	-20-85ºC	Protection Shell	IP65
