Animal Feed Cooling Equipment Chicken Feed Cooler

Product Description

Product Description

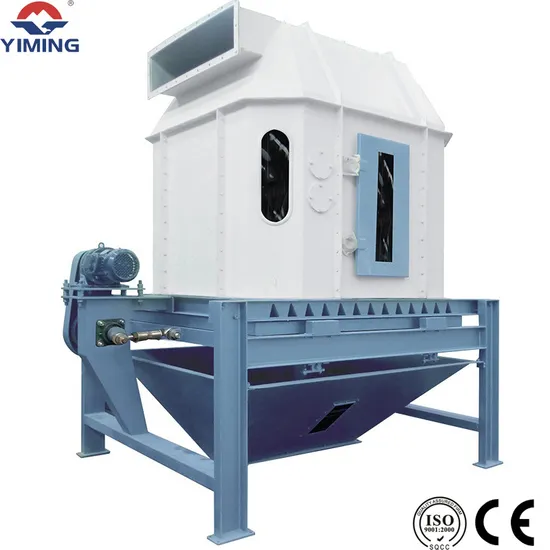

Animal feed cooling equipment chicken feed cooler
1. Feed counter-flow cooler is suitable for cooling various kinds of pellets such as pelleted feed, expanded feeds, extruded feeds and flake feeds etc.
2. Feed counter-flow cooler is structurally arranged in a vertical way, the appearance is simple and beautiful.
3. Feed counter-flow cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing and uniform discharging.
Performance
1.Counter-flow cooling,cool the pellets and lower humidity,after cooling the pellet temperature above room temperature 3-5 ºC ; precipitation rate=3.5%.
2.Rear elastic support reduces the noise greatly and improves the classification performance.
3.Using slide valve discharge structure,stable and reliable operation , the residual is small.
4.Suitable for cooling of various granular materials.
Working Principle
The working principle of feed counter-flow cooler
When pellet came out from Pellet Machine, it contains determinate moisture as 8~17%, temperature around 70~85°C, if the environment air with high humidity, pellets will absorb moisture from air, and will get mildew when storage. So a Feed Pellet Cooler is needed to keep pellets dry and safe to achieve storage requirement.
Product Parameters

Model	SKN1.0	SKN2.5		SKN4.0
Capacity (t/h)	1-2	4-5		10-15
Main powder (KW)	0.75	1.5		1.5
Volume(m³)	1	2.5		4
Cooling time	≥ 10-15 min
Discharge motor power(kw)	0.75		1.1		1.1
Airlock Power	0.75		0.75		0.75
