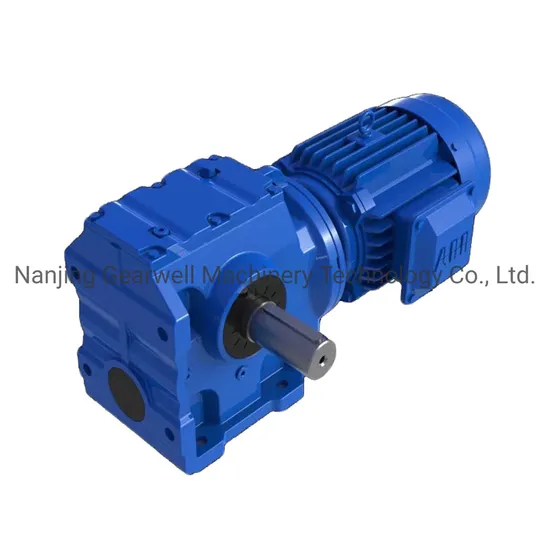

S Series Helical Worm Gearmotor Geared Motor Industrial Gearbox Flange-Mounted Hollow Shaft Speed Reducer
Products Description:
S series right-angle helical-worm reduction gearbox was designed after RV worm microreducer, which have a complete norm, wide speed for selection, and various mounting positions.
S series is one kind of Helical worm gearbox, designed as Modularization and high-stainless cast iron case. It is combination of helical gear and worm gear, which with higher efficiency and strength than simple aluminum alloy worm gearbox. Due to their outstanding efficiency, these drives can be used in every industrial sector and tailored to individual torque and speed requirements. The gear ratios afforded by the helical-worm gear stage and the low noise levels during operation make these gearmotors ideal low-cost solutions for simple applications.
Specifications:

Housing material	High-strength cast iron HT250
Gear material	20CrMnTi
Input Power	0.12-90KW
Output Torque	3.5-4000N.m
Output Speed	5-371 RPM
Gear Accuracy	7 to 6 level
Gear Surface hardness	HRC58°-62°
Input/Output shaft hardness	HB220-250
Noise(Max)	60-70dB
Tem.rise(Max)	40°C
Tem.rise(Oil Max)	50°C
Vibration	≤20um
Backlash	≤20Arcmin
Effeciency	Single stage 98%, Double-stage:96%, Three-stage:94%
Mounting Position	Foot / Flange Mounting
Motor	IP55,F Class

Input power rating and permissible torque
Size	37	47	57	67	77	87	97
Structure	S SA SF S AF SAT SAZ
Rated Power	0.12-1.5	0.12-1.5	0.18-3	0.25-5.5	0.55-7.5	0.75-15	1.5-22
Ratio	6.8-157.43	7.28-201	7.28-201	7.65-217.41	8.06-256.47	7.88-288	8.26-286.4
Torque(N.m)	90	170	300	520	1270	2280	4000

Gear Unit Weight
Gear Unit Type	S37	S47	S57	S67	S77	S87	S97
Weight	7	10	14	26	50	100	170
The weight are mean values, only for reference

Characteristics:
1. S series helical gear worm gear motor has high technical content, and has a helical gear and worm gear integrated drive to improve the torque and efficiency of the machine. This series of products has complete specifications, wide speed range, good versatility, adapt to various installation methods, performance, safety and reliability, long service life, and implementation of international standards.
2. The surface of the body has concave and convex heat dissipation, strong vibration absorption, low temperature rise and low noise.
3. The machine has good sealing performance and strong adaptability to the working environment.
4. The machine has high transmission precision, especially suitable for working in places with frequent starting. It can be connected with various types of reducers and equipped with various types of motor drives. It can be installed in the 90-degree transmission operation position.
5. The key components of the motor are made of high wear-resistant materials and have undergone special heat treatment. They have high processing precision, stable transmission, small volume bearing capacity and long service life.
6. The reducer can be equipped with various types of motors to form an electromechanical integration, which fully guarantees the quality characteristics of the products.
