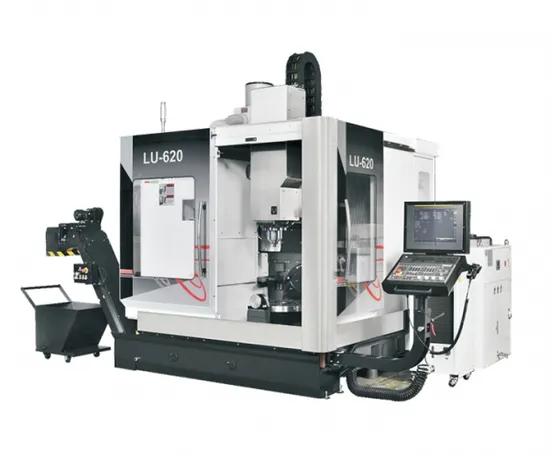

Lu-620 High Precision 5 Axis CNC Vertical Care Turning Milling Machining Lathe Machinery for Metal/Wood/Plastic Cutting Drilling Router Tapping Engraving
| US$220,000.00-247,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LU-620
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Condition
New
X/Y/Z Axes Travel
620/520/460
Spindle Nose to Table Surface
150~610
Spindle Transmission Type
Direct Drive
Tool Shank
ISO 40
Spindle Speed
12000rpm
Magazine Capacity
32t
Taper
Hsk63A
Max.Tool Length
250mm
Max.Tool Diameter(No Adjacent Tool)
75(127)
Spindle Motor(Cont/30mins)
18/21(Siemens)
X/Y/Z Axes Motor Power
6.5/4.5/6.5(Heidenhain)
B/C Axes Motor
8.6/4.5(Heidenhain)
T Slot Type
T18 Radial Type 8 Slots
Max.Work Table Loading
300kg
Transport Package
Wooden Case/ Iron Box
Specification
8800KG
Trademark
Litz
Origin
China
HS Code
8458110090
Production Capacity
200pieces/Year
Product Description
High Precision 5 Axis CNC Vertical Care Turning Milling Machining Lathe Machinery For Metal/Wood/Plastic Cutting Drilling Router Tapping Engraving For Sale| Model | LU-620A | |
| Travel | ||
| X/Y/Z Axes Travel | mm | 620/520/460 |
| B Axis Tilting Range | .50°~+110° | |
| C Axis Rotating Range | 360° | |
| Spindle Nose to Table Surface | mm | 150~610 |
| Spindle | ||
| Spindle Transmission Type | Direct Drive | |
| Tool Shank | ISO 40 | |
| Spindle Speed | rpm | 12000 |
| ATC | ||
| Magazine Capacity | T | 32 |
| Taper | HSK63A | |
| Max.Tool Length | mm | 250 |
| Max.Tool Diameter(No Adjacent Tool) | mm | ∅75(∅127) |
| Motor | ||
| Spindle Motor(Cont/30mins) | kw | 18/21(Siemens) |
| X/Y/Z Axes Motor Power | kw | 6.5/4.5/6.5(Heidenhain) |
| B/C Axes Motor | kw | 8.6/4.5(Heidenhain) |
| B/C Axes | ||
| Work table Size | mm | ∅650 |
| Center Hole Size | mm | ∅55H7X12 in depth |
| T slot type | mm | T18 Radial Type 8 Slots |
| Max.Work table Loading | kg | 300 |
| Rapid Travel | ||
| X/Y/Z | M/min | 36/36/36 |
| B/C | rpm | |
| Cutting Feedrate | mm/min | 1-20000 |
| Control | ||
| Type | HEIDENHAIN TNC 640 | |
| Miscellaneous | ||
| Machine Weight | kg | 8800 |
| Coolant Tank | L | 240 |
| Dimension(L*W*H) | mm | 3863x2730x3310 |
| Power Requirement | KVA | 25 |
| Air Sourcen | kg/cm²(l/min) | 6(1600) |
