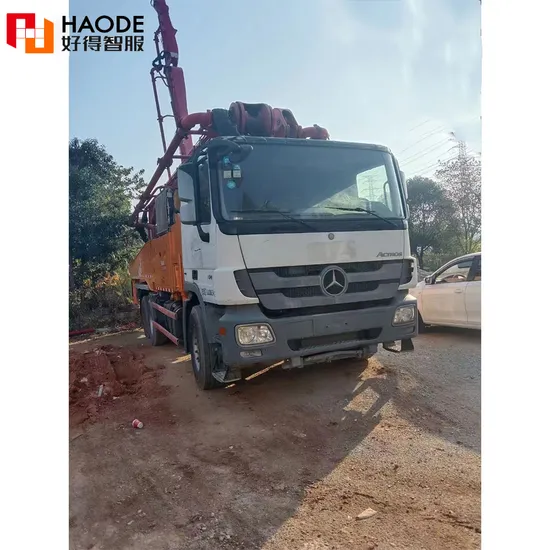

Used Pump Truck 49m with Benz Chassis Concrete Pumps 2014 Good Price
| US$7,000.00-8,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
49m pump concrete
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
Used
Color
Red
Product Name
Pump Truck
Power
300kw
Engine Brand
Top
Max. Vertical Conveying Distance
48m
Year
2020
Unique Selling Point
High Operating Efficiency
Hydraulic System Type
Open Type System
Maximum Aggregate Size
40 mm
Weight
34000 Kg
Hopper Capacity
700 L
Power Type
Diesel
Max. Horizontal Conveying
44m
Theory Output Capacity
170m3/H
Transport Package
Standard Package
Specification
12380mm*2550mm*4000mm
Trademark
BEST
Origin
China
HS Code
8705909100
Production Capacity
10000 Piece/Pieces Per Month
Product Description
| Description | Unit | Parameter value | |
| Outline dimension | mm | 12380*2550*4000 | |
| Overall weight | kg | 34000 | |
| Chassis | Model | SYM5350THB1E / SYM5350THB1C | |
| Max. speed | km/h | 90 | |
| Max. grade-ability | % | 40 | |
| Wheelbase | mm | 9760+7670+7410+9670+10060 | |
| Tire | 95/80R22.5 | ||
| Engine | Model | D12C5-490E0 / D12C3-490E0 | |
| Max. power | kW | 348 | |
| Max. torque | N·m/(r/min) | / | |
| Displacement | L | 12.12 | |
| Emission standard | Euro V /Euro III | ||
| Pumping system | Theoretical output | m3/h | 170 |
| Concrete pumping pressure | MPa | 8 | |
| Theoretical pumping times | Time/min | 19~29 | |
| Delivery cylinder diameter ×stroke | mm | φ260×1900 | |
| Max. diameter of pumping concrete | mm | ≤40 | |
| Filling height | mm | 1580 | |
| Concrete slump range | cm | 8~23 | |
| Placing boom | Reach height | m | 48.6 |
| Reach depth | m | 30.8 | |
| Slewin gradius | m | 43.6 | |
| Slewing angle | ° | ±360 | |
| Stabilizer span | Longitudinal span of stabilizer | mm | 8955 |
| Transverse span of front stabilizer | mm | 7884 | |
| Transverse span of rear stabilizer | mm | 9940 | |
Product Pictures
