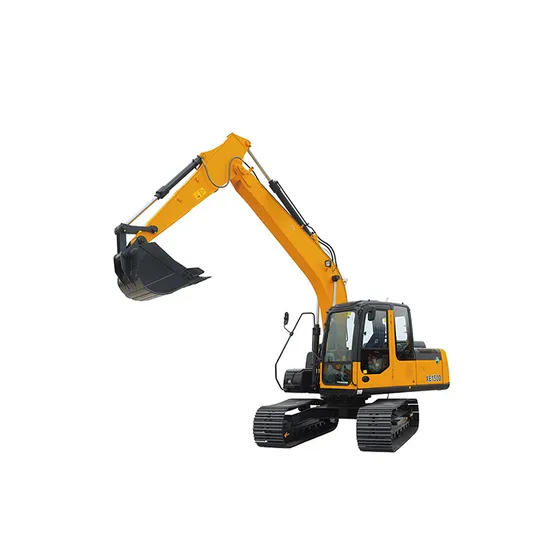

Brand New 15 Ton Hydraulic Excavator Xe150d with 0.61m3 Bucket

Product Description

The XE150D hydraulic excavator subject to full hydraulic drive has been widely used throughout China and exported to more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators and such characteristics of less fuel consumption and higher flexibility for small-sized excavators, with the sales leading its peers domestically for three consecutive years. Its working mechanism has a high-strength structure, able to meet the demands of all kinds of earthwork engineering if working together with a reinforced bucket; the reinforced four wheels and tracks can have its service life far longer than its major competitors, and moreover, its high-power driving motor can work freely in a variety of sites; the latest hydraulic components and electromechanical integration control technology can make full use of the engine power and save every drop of fuel to create more value for customers; all kinds of points for daily maintenance and service can be accessible easily on the ground, which can further facilitate the maintenance operation.

Product Parameters

Description		Unit	Parameter value
Operating weight		kg	14600
Bucket capacity		m³	0.32~0.71
Engine	Model
	No. of cylinders	---	4
	Output power	kW/ r/min	93/2200
	torque/speed	N.m	500/1300
	Displacement	L	3.76
Main performance	Travel speed(H/L)	km/h	5.3/3.2
	Gradeability	%	70
	Rotary speed	r/min	11.7
	Ground pressure	kPa	37
	Bucket digging force	kN	106.9
	Arm digging force	kN	73.4
Hydraulic system	Main pump	--	K7V63DTP
	Rated flow of the main pump	L/min	2×123.5
	Main safety valve pressure	MPa	34.3/37
	The pressure of the pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	260
	Hydraulic tank capacity	L	105
	Engine oil capacity	L	11
