Low Price Sumore Precision Shanghai China Mini Mill Drill Combo Machine Lathe Milling Drilling

Product Description

Product Description

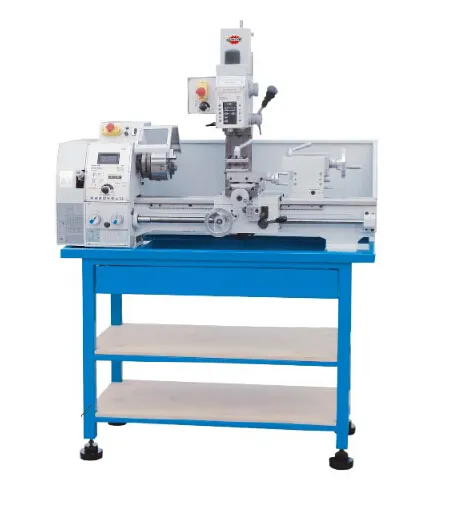

Lathe Mill Drill Combination Machine with 550/750mm Workpiece Length
Quick Detail:
Processing material: aluminum, copper, metal, wood, plastic, etc
Swing over bed: 250mm
Distance between centers: 550/750mm
Hole through spindle: 21mm
Max. tool dimension:14*14mm,
Description:
SP2304 lathe mill combo machine belongs to one of our most economic manual lathe mill combo machine. It is new condition not used lathe mill combo machine. And it is small in size and delicate in design. This lathe mill combo machine is made in China. The main features are as below:
1. High precision guide rail.
2. Easy operate
3. All gears are metal.
4. Right and left hand threads cutting is available .
5. Tailstock can be offset for turning tapers

Product Parameters

Model	SP2304
Bed width	135mm
Swing over bed	250mm
Distance between centers:	550/750mm
Hole through spindle	21mm
Spindle taper	MT3
Tailstock taper	MT2
Spindle speed	100-2000rpm
Max.travel of tailstock quill	65mm
Cross slide travel	140mm
Motor output power	750w
Range of threads: metrci	0.5 ~ 2.5 mm (18 thread pitches)
inch	8-56 TPI ( 27 thread pitches)
Range of longitudinal feeds	0.05-0.5 mm
Max.travel of saddle	460 mm
Range of transvers feeds	0.02-0.22 mm
Max.travel of cross slide	100 mm
Max.travel of top slide	60 mm
Max.tool dimension	14x14 mm
Motor power	750 W
Drilling and milling
Drilling capacity	16mm
End milling capacity	16mm
Face milling capacity	50mm
Table size	255x110 mm
T-slot size	2-7 mm
Longitudinal travel	460 mm
Vertial travel	210 mm
Spindle taper	MT 2
Sleeve travel	50 mm
Spindle to worktable	240 mm
Spindle speedHigh range	50 - 2250rpm
	45
Motor output power	500W
Packing size	1400x680x1000mm
N.W./G.W.	185/205kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
