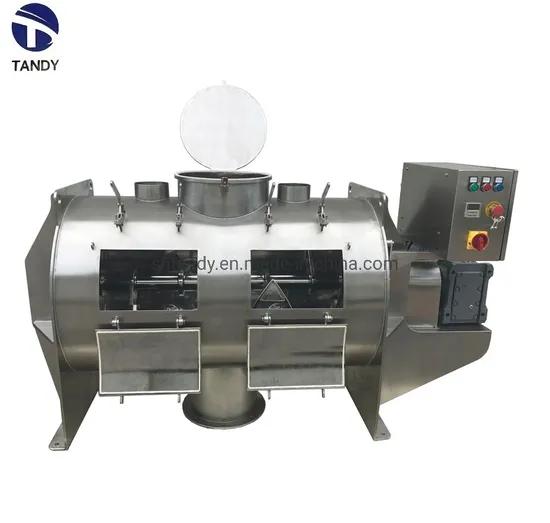

Horizontal Plough Shear Mixer Powder Mixing Machine

Product Description

Horizontal Plough Shear Mixer Powder Mixing Machine
Reference parameter:

Model no.	Effective volume(L)	Loading coefficient	Power(KW)	Rotate speed(R/min)	Size(mm)	Weight (kg)
TDP-200	200	0.6-0.8	4.0	53	1850X860X1100	420
TDP-300	300	0.6-0.8	5.5	53	1900X900X1200	680
TDP-500	500	0.6-0.8	7.5	45	2050X1050X1250	890
TDP-1000	1000	0.6-0.8	11.0	45	2500X1200X1350	1360
TDP-1500	1500	0.6-0.8	15.0	39	2950X1350X1400	1780
TDP-2000	2000	0.6-0.8	18.5	39	3100X1500X1650	2260
TDP-3000	3000	0.6-0.8	30.0	31	3650X1680X1920	3150
Pls feel free to contact us if you need more technical parameters!

FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Euope , American , Australia , Asia , Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Features of plough mixing machine :
Plough shear mixer is formed circular cylinder barred, drive mechanism, plough shears ,discharging vent and other devices ; plough share inside mixer is rotating with main axial so that the materials along with the cylinder cantilever radial circumferential turbulence, at the same time the radial material through shear group, was scattered by the high speed sheer ,constant alternation, compound, the materials is mixed uniformity in short time.
1. It is high speed to the materials for cutting , crushing ,blending.
2. It is with attractive appearance under advance processing technology , there is smaller gap between plough shear and barrel .
3. Main shaft seal with PETP seal and air -purged seal .
4. It can be added heating or cooling jacket device if necessary .
