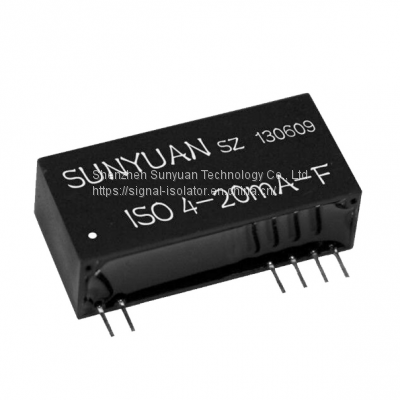

Loop Powered 4-20mA Power Distributor and Isolator for Two Wire Sensors
Features:
1. Supply power to sensor:16V--21.5VDC.
2. 4-20mA signal loop active output.
3. High accuracy and linearity (Non-linearity<0.2%).
4. Low cost, small size, standard SIP 12 pin package.
5. 4-20mA signal input/Output, 3000VDC isolation.
6. Industrial temperature range (-45-+85ºC).
7. Frequency response (small signal bandwidth): 100Hz (Io=20mA).
Applications:
1. PLC,DCS analog signal data acquisition and isolation
2. Industrial process 4-20mA signal isolation
3. Ground-loop elimination
4. No distortion in long distance signal transmission
5. Instrument signal acquisition
6. Electric supervision , medical application and isolated safety bar
Specification:

Item	Loop Powered 4-20mA Power Distributor and Isolator for Two Wire Sensors
Model No.	ISO 4-20mA
Input	0-20mA/4-20mA
Output	0-20mA/4-20mA
Power supply	Loop powered
Distribution power	16~21.5VDC
Isolation voltage	3KVDC isolation between input and output
