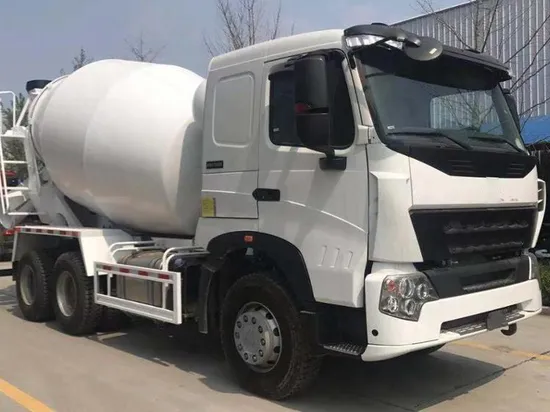

HOWO Rhd 180HP 4X2 5m3 Concrete Mixer Truck
Basic Info.
Model NO.
HOWO
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
240m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
New
Color
Green
Capacity
4cbm
Curb Mass
7500kg
Rated Output Power
180HP
Max. Gradeability
25%
Driving Type
4^2
Transport Package
Nude Package
Specification
10050*2500*3960mm
Trademark
EVANGEL
Origin
China
HS Code
8474310000
Production Capacity
100
Packaging & Delivery
Package Size
900.00cm * 400.00cm * 350.00cm
Package Gross Weight
11800.000kg
Product Description
Brand New HOWO 4*2 4Cbm Concrete Mixer Truck With Parameters Product Description1.Stirring device is mainly composed of mixing drum and auxiliary support components.< Mixing drum of concrete loaded containers,rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring.in the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing tube inversion, the concrete to discharge along the blade.
2.Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.
3.Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar,concrete material spilled, the series of problems such as driving safety.
| Basic Information | Chassis model | ZZ1167 |
| Cab | Flat head ,single row with one berth | |
| Air condition | Yes | |
| Drive position | Right hand drive | |
| Over Dimensions(L×W×H)(mm) | 7500*2500*3600 | |
| Curb mass(kg) | 7500 | |
| Wheelbase(mm) | 3800 | |
| Drive style | 4x2 | |
| Tread(front/rear)(mm) | 1860/1670 | |
| Approach/Departure angle(°) | 20/19 | |
| Leaf-spring system | 9/12+9 | |
| Maximum speed (km/h) | 80 | |
| Engine | Engine model | MC05.18-40,MAN technology |
| Engine type | 4 cylinder in line,Water cooling, four stroke ,Turbocharged Intercooled,High pressure common rail | |
| Manufacturer | China national heavy duty truck group | |
| Displacement(ml)/Power(HP) | 4580/180 | |
| Emission standard | Euro 4 | |
| Fuel type | DIESEL | |
| Gear box | HW90510C, 10 forward gear and 1 reverse gear | |
| Front axle | 3.2Tons | |
| Rear axle | 9Tons | |
| Tyre | Tire specifications | 9.00R20,radial tire |
| Number of tyres | 6+1 Spare tire | |
| Mixing drum | Volume of mixer | 4m3 |
| Rotating speed | 6-12r/min | |
| Feed rate(m3/min) | ≥3 | |
| Discharge(m3/min) | ≥2 | |
| Discharge residual percentage | ≤0.7 | |
| Water supply system | Air pressure | |
| Remark | ||
