Agricultural Machinery Walking Tractor Mounted Cultivator
Basic Info.
Model NO.
3Z-4
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Hanging
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
Red
Warranty
1year
Product Name
Cultivator
Working Width
2900mm
Working Depth
100-200mm
Ridging Row
3
Matched Power
40-50HP
Weight
150kg
Specification
ECU, CE
Trademark
YCHS
Origin
China
Production Capacity
1000sets/Year
Product Description

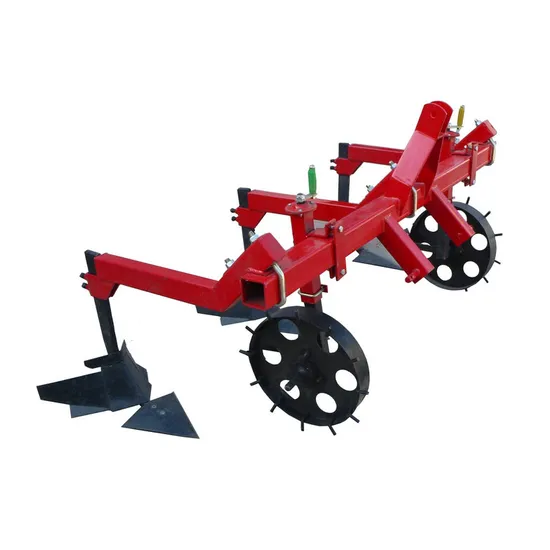

3Z cultivator is suitable for cultivating corn, cotton, soybean, sugar beet, etc. It can perform cultivating, ditching, riding, deep loosing, etc. The rotary cultivator can break the harden soil, loose soil, and keep the underground water of soil, and clean the stubble of crop. This cultivating machine is rational structure. It is safe, durable, and high efficiency.Advantages: It is a tractor mounted cultivator. The working depth of this farm cultivator could be adjustable. The plow tip could be selectable for your need.
Model | unit | 3Z-2 | 3Z-3 | 3Z-4 | 3Z-5 |
| Working width | mm | 1100 | 1900 | 2900 | 3700 |
| Working depth | mm | 100-200 | |||
| No. of tines | 2 | 3 | 4 | 5 | |
| Ridging of rows | 1 | 2 | 3 | 4 | |
| Total weight | kg | 90 | 120 | 150 | 190 |
| Matched power | hp | 18 | 20-30 | 40-50 | 70-80 |
| Linkage | Three-point suspension I type | Three-point suspension II type | |||
