Mr-X6ra 4-20 mm Corner Radius Milling Cutter Grinder End Mill Grinder

Product Description

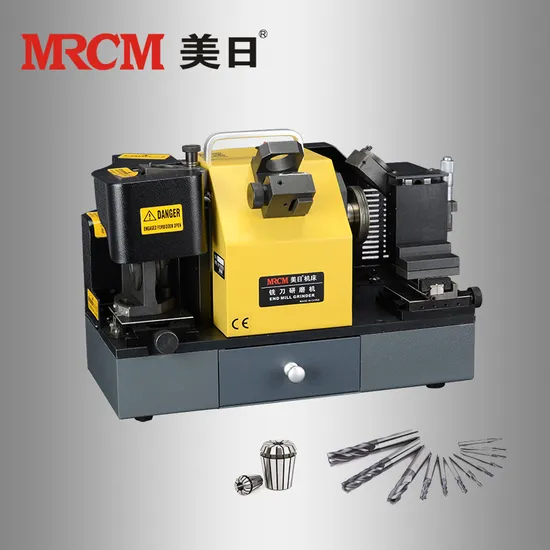

MR-X6RA 4-20 mm Corner Radius Milling Cutter Grinder End Mill Grinder
Product Description 1. It is specialized in re-sharpening end mill and corner radius end mill, it can grind 2-flute, 3-flute and 4-flute, Also can can open
the Tungsten bar's cutting edge directly.
2. It can grind the radius of corner radius end mill as R0.5, R1, R1.5 and R2. If there is any other radius, we can make the
different grinding wheel.
3. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.
4. With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
5. The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
Standard withSDC grinding wheel for the carbide material, optional CBN grinding wheel for the HSS material.
SPECIFICATION

Model:	MR-X6RA
Diameter:	Φ4-Φ20mm
Power:	220V/160W
Speed:	4400rpm
Point angle:	0°-5°
Dimension:	42*25*30cm
Weight:	26KG
Standard Equipment:	Face grinding wheel: SDC (for carbide)×2 R grinding wheel: SDC (for carbide)×1
	Nine collets: Φ4,Φ6,Φ8,Φ10,Φ12,Φ14,Φ16,Φ18,Φ20
	Four collet chucks: 2,4 flutes ×2 piece; 3,6 flutes×2 piece
Optional Equipment:	Face grinding wheel: CBN (for HSS)×2 R grinding wheel: CBN (for HSS)×1

Details:

MR-X6RA
END MILL SHARPENER
More than 15 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
INSISTING ON ORIGINAL DESIGN FROM CHINA
Standard accessories:

Grinding wheel ×3 pcs Standard is SDC for carbide material	Collets ×9 pcs (Φ4-Φ20mm)	Collet chuck ×4 pcs

Packaging & Shipping
EXPORTING PACKAGE, SAFE AND STABLE
Company Information
MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery
tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we've been committed to research, develop and produce the grinding tools. We've been
started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve
the working life of tools and reduce production costs.
Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder,
saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero
positioning, and so on.
Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the
domestic and foreign companies. We've passed the CE, ISO 9001 certification, have been applied for over 70 national
patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as
Japan, Europe countries and so on.

FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you
and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according
to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
